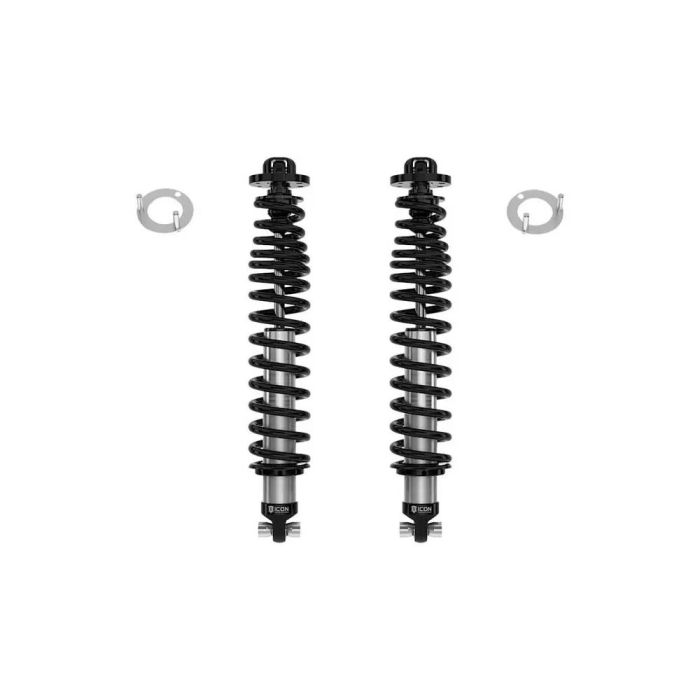

ICON 21-UP Ford Bronco 2-3in Rear 2.5 VS IR COILOVER KIT - 48610

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 2-3" of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25" of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

View Installation Instructions

Features:

• Increased wheel travel (up to 14") and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25" of rear lift on Sasquatch Broncos
• Unique ICON engineered triple rate coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
• Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Top of Mounting Plate
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Progressive Triple Rate
• Upper Mount Type: Mounting Plate

• When Running 37" Tires Use Up Travel Limiter'S Part #611074 For The Rear
• Oem Wheels & Tires Fitment: Yes
• Lift Height Ranges Advertised Are For 4-Door Models. 2-Door Models Will Net Approximately .5" Of Additional Rear Lift Over Stock.
• Not Compatible With Bronco Raptor
• Triple Rate Rear Coils Are Optimized For Improved Suspension Performance And Ride Quality For A Near-Stock Weight Bronco. Their Softer Initial Spring Rates Will Net Lower Than Advertised Ride Heights As Weight Is Added To The Rear Of The Vehicle. Coil Spring Options For Heavier Equipped Broncos Coming Soon!

• Ford Bronco Black Diamond 4 2021-2022
• Ford Bronco Big Bend 4 2021-2022
• Ford Bronco Wildtrak 4 2021-2022
• Ford Bronco Wildtrak 2 2021-2022
• Ford Bronco Base 4 2021-2022
• Ford Bronco Base 2 2021-2022
• Ford Bronco Big Bend 2 2021-2022
• Ford Bronco Black Diamond 2 2021-2022
• Ford Bronco Outer Banks 4 2021-2022
• Ford Bronco Outer Banks 2 2021-2022
• Ford Bronco Badlands 4 2021-2022
• Ford Bronco Badlands 2 2021-2022
• Ford Bronco First Edition 4 2021-2021
• Ford Bronco First Edition 2 2021-2021
• Ford Bronco Everglades 2022-2022
