Belltech 4-6" Suspension Lift Kit Toyota Tacoma 4WD (Excludes TRD Pro) 2016-2021- BELL-154301HK

$3,139.69
sku
BELL-154301HK
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

Elevate your truck or Jeep to new heights with Belltech's all new suspension lift kit systems from Belltech. Precision engineered in the USA to ensure every aspect was considered to provide you with the highest quality Lift Kit Suspension System that delivers on performance. Through innovative design with the focus on performance, these suspension lift kit systems are the best riding lift kits on the market - period. Built to ride, handle and tackle off road obstacles with ease!

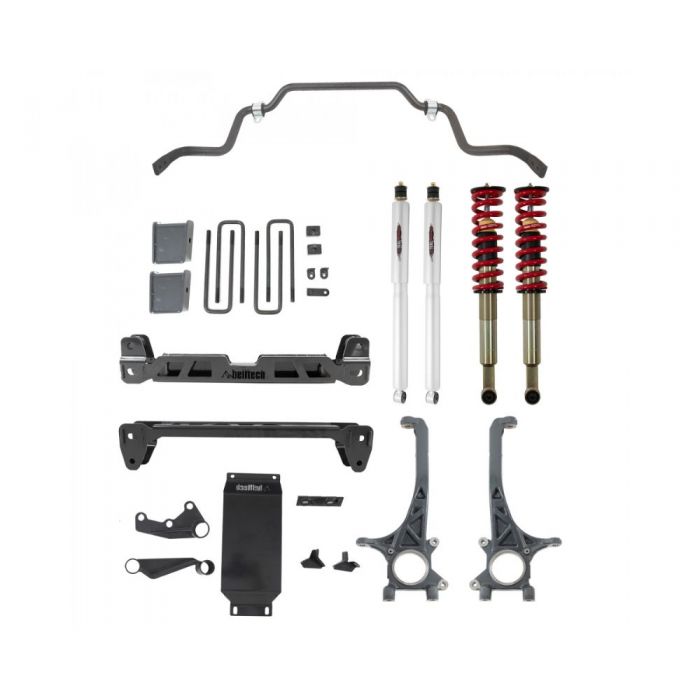

Durability, longevity, and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. We have created something that takes your truck to entirely new levels of functionality and performance. Our complete kit features our height-adjustable Trail Performance coilovers in the front and rear Trail Performance Twin Tube shocks. Both the coilovers and shocks feature perfectly preset, low-friction dampers that are precisely tuned for your truck and do not lose damping forces over time or under stress. Using this advanced damper technology provides a smooth, high-quality ride.

The front end utilizes an extremely successful grouping of components. The Trail Performance lift coilovers use an easy-to-place, spring perch and threaded damper design that allows for precise lift placement from 4" to 6" in height. Another successful component pairing is our Belltech lift spindles, which are made of ductile iron and powder-coated to increase longevity. Belltech lift spindles are purposely designed to reduce weight, increase strength, and keep proper ball joint angles. In keeping ideal ball-joint angles, we maintain factory geometry. Our kit also retains your vehicle's factory turning radius and does not increase track width. Also included in the front end are Belltech high clearance cross members constructed of ¼" thick steel. Our cross members are made to be immensely rigid. They bring down the control arms to maintain factory suspension geometry and integrate a mounting point for the differential. Connecting the cross member to the differential are our diff drop-down brackets, which mimic OE alignment. Our kit makes it easy to reuse your OE skid plate but adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent overextension of the steering rack, and a front anti-sway bar is included to improve handling and reduce body roll. The sway bar was designed specifically for your Tacoma and is made to be especially robust constructed of cold-formed 1 3/8" solid steel and powder coated to increase its longevity.

In the rear, Belltech increases ride quality by using Trail Performance Twin Tube Shocks. Heavy-duty powder-coated 4" steel lift blocks and extended length U-bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to maintain factory pinion angles.

The entire kit uses high-quality hardware and relocation brackets, placing brake lines in appropriate settings when necessary. We pair our phenomenal, long-lasting Belltech components with the factory alignment system making installation easy so you will have more time to explore. Take new roads and tackle more challenging terrain with Belltech's complete Tacoma lift kit.

Product Features:

  • Trail Performance height adjustable coilovers
  • Trail Performance Twin Tube shocks
  • 1 3/8" cold-formed solid steel front anti-sway bar
  • Height adjustable 4" to 6"
  • Retains factory alignment
  • Maintains OE suspension geometry and factory turning radius
  • Includes differential drop-down bracket
  • Easy installation
  • High-quality hardware
  • Improved ride-quality
  • Adds clearance
  • Allows room for larger tires/wheels
  • ¼" thick skid plate protects differential
  • Retains factory track width
  • High-clearance, rigid cross members
Tire/Wheel Fitment:
  • 16" minimum wheel ⌀
  • 5" maximum back spacing
  • Fits up to a 35" tire at a 6" lift
*Trimming may be required

Install Instructions:Fitment:
  • Toyota Tacoma Limited 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma SR 2.7l L4 2TR-FE 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma SR 2.7l L4 2TR-FE 4WD, Extended Cab Pickup 2016-2021
  • Toyota Tacoma SR 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma SR 3.5l V6 2GR-FKS 4WD, Extended Cab Pickup 2016-2021
  • Toyota Tacoma SR5 2.7l L4 2TR-FE 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma SR5 2.7l L4 2TR-FE 4WD, Extended Cab Pickup 2016-2021
  • Toyota Tacoma SR5 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma SR5 3.5l V6 2GR-FKS 4WD, Extended Cab Pickup 2016-2021
  • Toyota Tacoma Trail 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2021
  • Toyota Tacoma TRD Off-Road 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma TRD Off-Road 3.5l V6 2GR-FKS 4WD, Extended Cab Pickup 2016-2021
  • Toyota Tacoma TRD Sport 3.5l V6 2GR-FKS 4WD, Crew Cab Pickup 2016-2021
  • Toyota Tacoma TRD Sport 3.5l V6 2GR-FKS 4WD, Extended Cab Pickup 2016-2021
Note:
  • UOM: Kit
More Information
Brand Belltech
Make Model Year Toyota Tacoma 2016, Toyota Tacoma 2017, Toyota Tacoma 2018, Toyota Tacoma 2019, Toyota Tacoma 2020, Toyota Tacoma 2021
