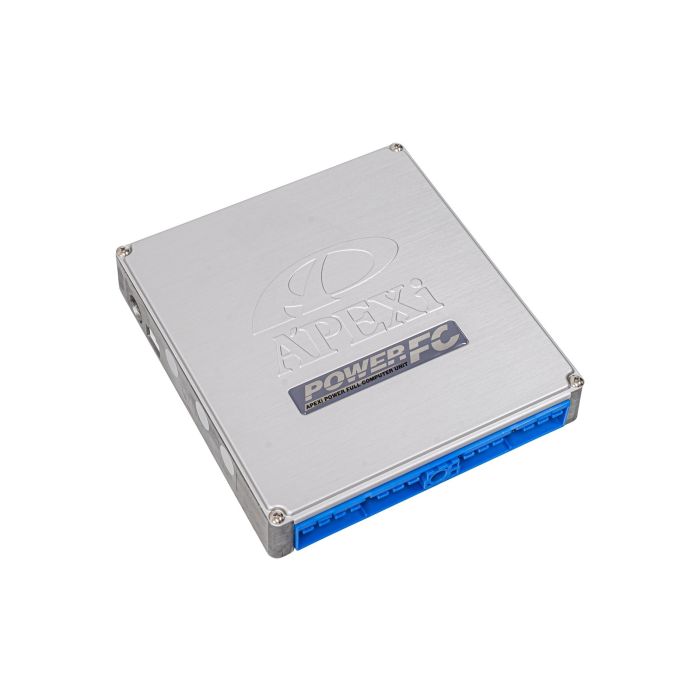

A'PEXi - Power FC - 1994-1996 Nissan Silvia/240SX (S14)- [D-Jetro MAP] - 414-N031
APEXi Power FC (D-Jetro MAP Conversion) for Nissan Silvia 200SX (S14 Early) 93-96 - 414-N031
Unlock the full potential of your Nissan Silvia 200SX with the APEXi Power FC (D-Jetro MAP Conversion). Designed specifically for the S14 Early models from 1993 to 1996, this advanced engine management system offers unparalleled control and performance enhancements. Whether you're a seasoned tuner or just starting your journey into car modifications, the Power FC provides a seamless experience that elevates your driving to new heights.
- Precision Engine Management: Gain complete control over your engine's performance with the Power FC's sophisticated tuning capabilities. Adjust fuel maps, ignition timing, and more to achieve optimal power output and efficiency.
- MAP Sensor Conversion: The D-Jetro MAP Conversion eliminates the need for a mass airflow sensor, allowing for a cleaner engine bay and improved airflow. This results in more accurate readings and better performance.
- Plug-and-Play Installation: Designed for easy installation, the Power FC connects directly to your vehicle's factory wiring harness, making it a straightforward upgrade without the need for extensive modifications.
- Real-Time Monitoring: Keep an eye on vital engine parameters with the optional hand-held commander unit. Monitor and adjust settings on the fly to ensure your vehicle is always performing at its best.
- Customizable Tuning: Tailor your vehicle's performance to your specific needs with customizable tuning options. Whether you're looking for more power on the track or better fuel efficiency on the road, the Power FC has you covered.
Experience the difference that expert engineering and precision tuning can make with the APEXi Power FC. Transform your Nissan Silvia 200SX into a high-performance machine that delivers exhilarating driving experiences every time you hit the road.
The Power FC proudly stands as APEX's answer to the constraints and limitations associated with most piggy-back style fuel controllers. The Power FC is a complete, stand alone, total engine management system capable of handling virtually anything thrown in its path. From multiple point fuel and ignition control to VTEC engagement (Honda applications) and boost settings, the Power FC is capable of accommodating even the most demanding performance enthusiasts.
Currently available exclusively through Power Excel Shop the Power FC replaces the factory ECU and controls all vital engine parameters (Off road use only, no OBD-II). Installation is as easy as replacing the factory ECU. (Some minor rewiring is required on select vehicles). The factory engine harness does not need to be replaced and all critical accessories such as air conditioning continue to function. By using the optional FC COMMANDER, the user can adjust and modify a wide range of settings. Since there is no need to upgrade ROM chips or modify ECU, the factory ECU can be kept by the original user. The Power FC also comes pre-programmed with several base maps. (Currently with Japan Domestic Market Vehicle Maps. Minor initial tuning may be required. Please contact your authorized Power Excel shop for more information.) This makes the initial tuning process much quicker. As with all other fuel controllers, the POWER FC should be tuned on a dynomometer by a trained professional. A high grade air/ fuel ratio monitor is also recommended during tuning to ensure best results.
- L- Jetro Kits are MAF based
- D-Jetro Kits are MAF to MAP Sensor conversion kits
- D-Jetro Kits require optional sensors & harnesses
| Bolt-On | Yes |
|---|---|
| Part Number | 414-N031 |
| Monitor Mode | In Monitor Mode, the Commander can display up to 10 parameters of data in real time. -Engine RPM-Ignition Timing-Vehicle Speed-Air Flow Voltage (Pressure Sensor Voltage)-Injector Duty Cycle-Boost-Knocking Level-Battery Voltage-Intake Air Tem |
| Setting Mode | Setting Mode allows full access to the 20x20 ignition timing and fuel correction maps. The user can adjust any portion of this map in 5C5 sections using the FC Commander Hand-held controller. Full 20x20 map resolution can be seen using our FC Commander P |
| ETC Mode | The ETC Menu contains utility parameters such as: -Version information- Sensor Check- Function Select- OLED screen Brightness- Initialization of all Data In addition, the ETC Mode allows the user to monitor all factory sensors through one screen. |
| Electronics Model Compatibility | Power FC |
| Year | 1994, 1995, 1996 |
| Make | Nissan |
| Model | 240SX, Silvia |
| Engine | SR20DET |
| Chassis | S14 (Zenki) |
| FC Commander | 415-A030 |
| Boost Control Kit | 415-A001 |
| Special Notes | PRODUCT DISCLAIMER - ***Off Road / Race Use Only*** |
![""]("https://cdn.shopify.com/s/files/1/1174/3062/files/warning_triangle_480x480.gif?v=1601579378") | WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
| Brand | APEXi |
|---|
