A'PEXi - Power FC - 1999-2002 Nissan Silvia (S15)- [D-Jetro MAP] - 414-N046

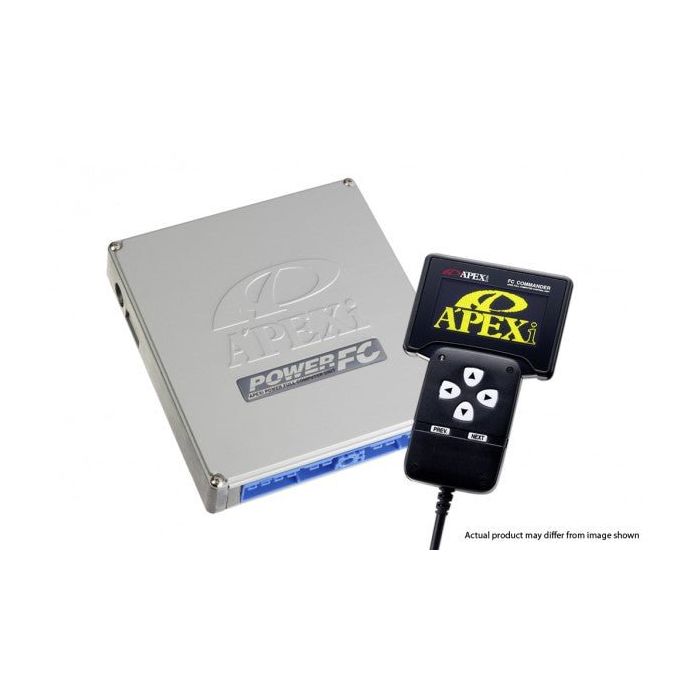

APEXi Power FC (D-Jetro MAP Conversion) for Nissan Silvia 200SX (S15) 99-02 - 414-N046
Unlock the true potential of your Nissan Silvia 200SX (S15) with the APEXi Power FC (D-Jetro MAP Conversion). This advanced engine management system is designed to elevate your driving experience by offering unparalleled control and precision. Whether you're a seasoned enthusiast or just starting your journey into performance tuning, this system provides the tools you need to optimize your vehicle's performance.
- Enhanced Engine Management: The APEXi Power FC replaces the factory ECU, offering full control over fuel and ignition parameters for a customized driving experience.
- MAP Sensor Conversion: The D-Jetro version eliminates the need for a mass airflow sensor, using a MAP sensor instead. This results in improved throttle response and increased reliability.
- User-Friendly Interface: With its intuitive hand-held controller, you can easily adjust settings and monitor engine parameters in real-time.
- Plug-and-Play Installation: Designed specifically for the Nissan Silvia 200SX (S15) 99-02, installation is straightforward, allowing you to get back on the road quickly.
- Improved Performance: Experience smoother acceleration, better fuel efficiency, and enhanced overall engine performance.
- Customizable Tuning: Tailor your vehicle's performance to your specific needs, whether for daily driving or track days.
Transform your driving experience with the APEXi Power FC (D-Jetro MAP Conversion) and enjoy the perfect blend of power, precision, and reliability. This system is your gateway to unlocking the full potential of your Nissan Silvia 200SX (S15), ensuring every drive is a thrilling adventure.
The Power FC proudly stands as APEX's answer to the constraints and limitations associated with most piggy-back style fuel controllers. The Power FC is a complete, stand alone, total engine management system capable of handling virtually anything thrown in its path. From multiple point fuel and ignition control to VTEC engagement (Honda applications) and boost settings, the Power FC is capable of accommodating even the most demanding performance enthusiasts.
Currently available exclusively through Power Excel Shops the Power FC replaces the factory ECU and controls all vital engine parameters (Off road use only, no OBD-II). Installation is as easy as replacing the factory ECU. (Some minor rewiring is required on select vehicles). The factory engine harness does not need to be replaced and all critical accessories such as air conditioning continue to function. By using the optional FC COMMANDER, the user can adjust and modify a wide range of settings. Since there is no need to upgrade ROM chips or modify ECU, the factory ECU can be kept by the original user. The Power FC also comes pre-programmed with several base maps. (Currently with Japan Domestic Market Vehicle Maps. Minor initial tuning may be required. Please contact your authorized Power Excel shop for more information.) This makes the initial tuning process much quicker. As with all other fuel controllers, the POWER FC should be tuned on a dynomometer by a trained professional. A high grade air/ fuel ratio monitor is also recommended during tuning to ensure best results.
- L- Jetro Kits are MAF based
- D-Jetro Kits are MAF to MAP Sensor conversion kits
- D-Jetro Kits require optional sensors & harnesses
| Bolt-On | Yes |
|---|---|
| Part Number | 414-N046 |
| Monitor Mode | In Monitor Mode, the Commander can display up to 10 parameters of data in real time. -Engine RPM-Ignition Timing-Vehicle Speed-Air Flow Voltage (Pressure Sensor Voltage)-Injector Duty Cycle-Boost-Knocking Level-Battery Voltage-Intake Air Tem |
| Setting Mode | Setting Mode allows full access to the 20x20 ignition timing and fuel correction maps. The user can adjust any portion of this map in 5C5 sections using the FC Commander Hand-held controller. Full 20x20 map resolution can be seen using our FC Commander P |
| ETC Mode | The ETC Menu contains utility parameters such as: -Version information- Sensor Check- Function Select- OLED screen Brightness- Initialization of all Data In addition, the ETC Mode allows the user to monitor all factory sensors through one screen. |
| Electronics Model Compatibility | Power FC |
| Year | 1999, 2000, 2001, 2002 |
| Make | Nissan |
| Model | Silvia |
| Engine | SR20DET |
| Chassis | S15 |
| FC Commander | 415-A030 |
| Boost Control Kit | 415-A013 |
| Special Notes | PRODUCT DISCLAIMER - ***Off Road / Race Use Only*** |
![""]("https://cdn.shopify.com/s/files/1/1174/3062/files/warning_triangle_480x480.gif?v=1601579378") | WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
| Brand | APEXi |
|---|
