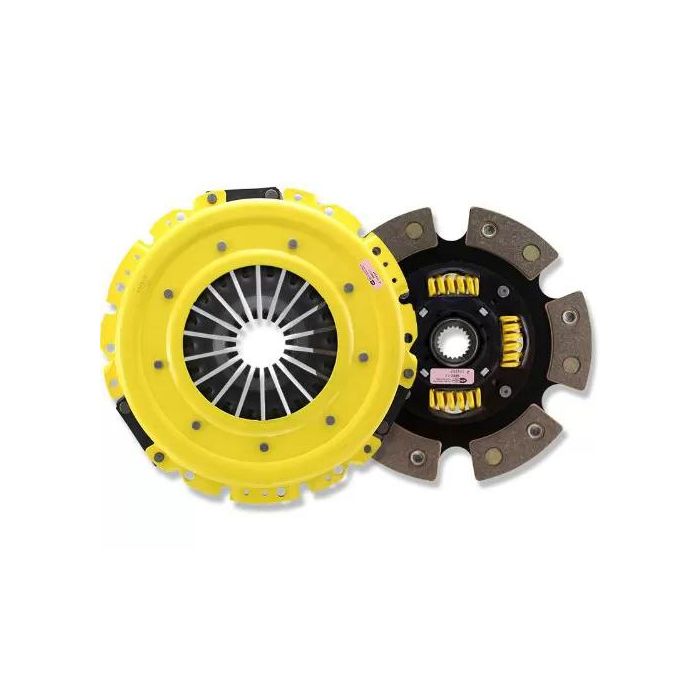

ACT 1991 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit - ZM1-HDG6
Please Request Quote for stock status
ACT s Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features:
- 256 ft.lbs. Max Torque
- 45% Pedal Increase
- A low to moderate pedal feel aggressive engagement with stock to low to moderate gear rattle.
- All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM.
- Recommended for high horespower street or race use
- Mazda Miata 1.6L 1989-1993
ACT s Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features:
- 256 ft.lbs. Max Torque
- 45% Pedal Increase
- A low to moderate pedal feel aggressive engagement with stock to low to moderate gear rattle.
- All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM.
- Recommended for high horespower street or race use
- Mazda Miata 1.6L 1989-1993
| Brand | ACT |
|---|---|
| upc | 842385008796 |
