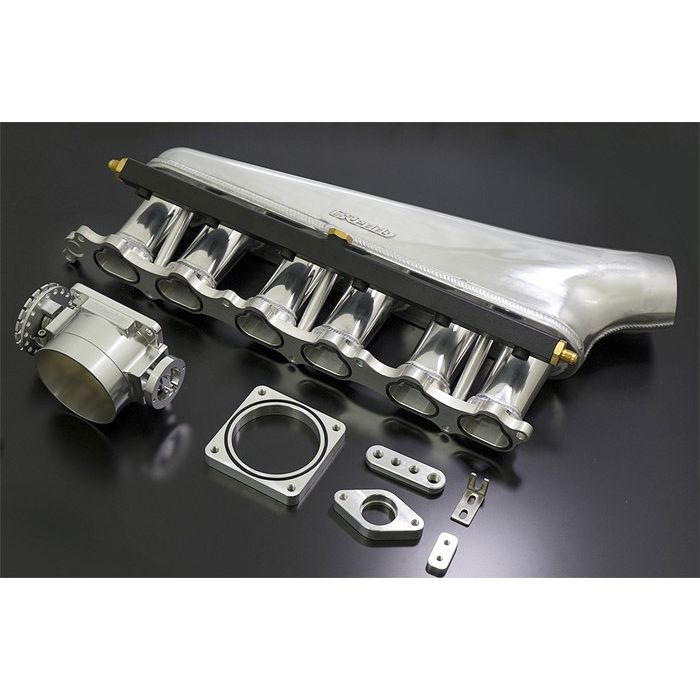

GReddy Pro Intake Plenum with 90mm Throttle Body Toyota 2JZ-GTE- GRED-13512303

Designed specifically for custom applications with 2JZ engine transplants, the GReddy 2JZ Pro Surge Tank Kit offers the versatility to best match the throttle-body inlet angle and vacuum/air ports for your engine bay. This Pro kit includes 4.0l tank capacity with a large 90mm throttle-body, and top feed fuel rail, and necessary weld-on flanges. For additional rigidity during high boost applications, it uses thick 3mm formed metal tank that is welded to a precision machined, grooved base, with six individual, internal velocity-stacks. Also pre-welded are the tuned primary runners and intake manifold flange with fuel injector ports. Another key feature is the unique, purpose-built fuel-resist, ring-type gaskets that seal the manifold to the head.

Kit Includes:

• Surge Tank
• Throttle Body
• Throttle Flange
• Fuel Delivery Tube & Mounts

• Collector tank capacity 4.02 l (normal ratio 200%)
• Surge tank, base plate and runners pre-welded
• Welding required to attach throttle body flange, throttle cable mount and air port flanges
• Tuned internal velocity stacks on each runner
• Primary runner length 13.0mm, OD 14.0mm ID 13.0mm
• Specially designed and manufactured O-ring style gasket provide superior manifold to head sealing for each runner
• Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft
• Fuel Delivery tube for 14mm top feed injector (compatible with Nissan R35 VR38DETT factory injectors)
• Compatible with OEM factory Idler Control Valve and TPS Throttle Position Sensor

• Needs assembly/ welding
• For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
• This product is illegal to be driven on public roads in the USA.
