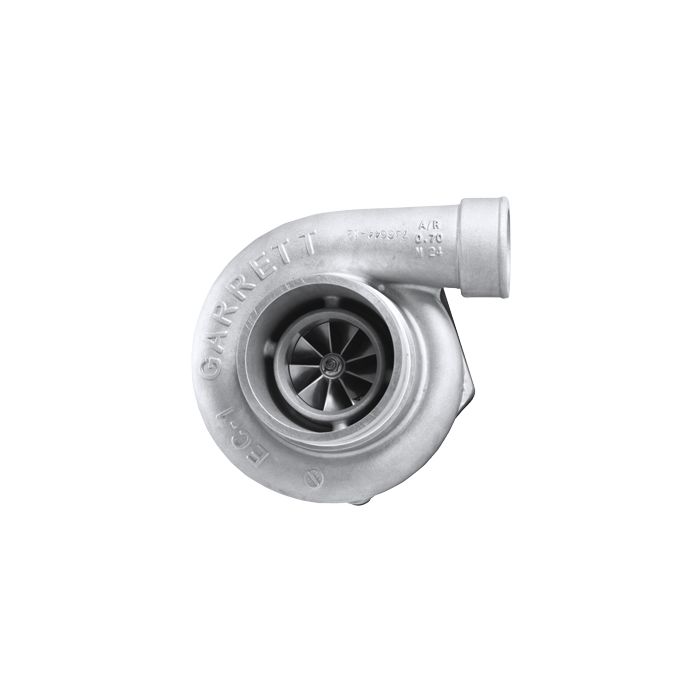

Garrett GTW3684 Super Core CHRA 715582-0007 - 841297-5002S

Special Price $867.99 Regular Price $1,247.08
sku
grt841297-5002S
Free Shipping Banner
Stock is low or unavailable.
Please Request Quote for stock status
Unleash the full potential of your vehicle with the Garrett GTW3684 Supercore - 841297-5002S. This high-performance turbocharger is designed to deliver exceptional power and efficiency. - **Enhanced Performance**: Boosts horsepower and torque for a thrilling driving experience. - **Durable Construction**: Built with premium materials for long-lasting reliability. - **Optimized Design**: Features advanced aerodynamics for improved airflow and reduced lag. - **Versatile Compatibility**: Suitable for a wide range of vehicles and applications. - **Easy Installation**: Comes with a straightforward setup process for hassle-free upgrades. Elevate your ride with the Garrett GTW3684 Supercore and experience the difference.

GTW3684R Turbocharger

Horsepower: 425 - 750

Displacement: 2.0L - 5.3L

Important product information: Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.

Features

  • PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • 62mm TURBOCHARGER COMPRESSOR OPTION
  • AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
  • FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
  • TURBINE HOUSINGS AVAILABLE IN DIVIDED CONFIGURATION
  • LIGHTWEIGHT ALUMINUM BACKPLATE

GTW3684R

Reference Data

The latest Garrett technologies featuring many advanced features.


GTW3684R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 425-750              Disp: 2.0L-5.3L 62mm 84mm 54 0.70 71mm 62mm 76
Supercore PN
Ball Bearing 841691-5002S
Journal Bearing 841297-5002S
Turbine Kits: GTW36 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GTW 3684 Supercores 844669-0005 0.70 T4 V-Band Free Float Y
844669-0007 1.15 T4 V-Band Free Float Y

GTW3684R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTW3684R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

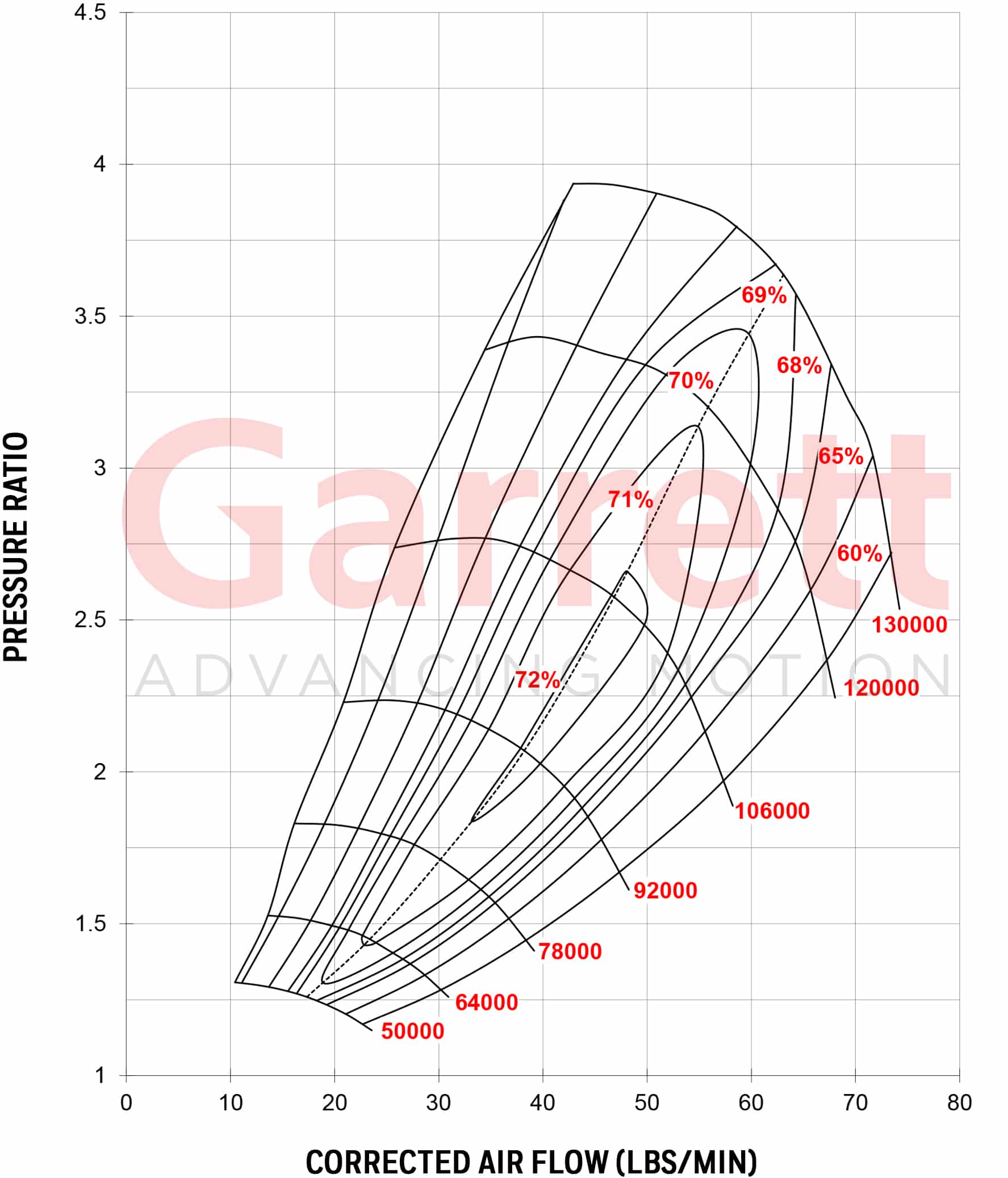

Compressor Map

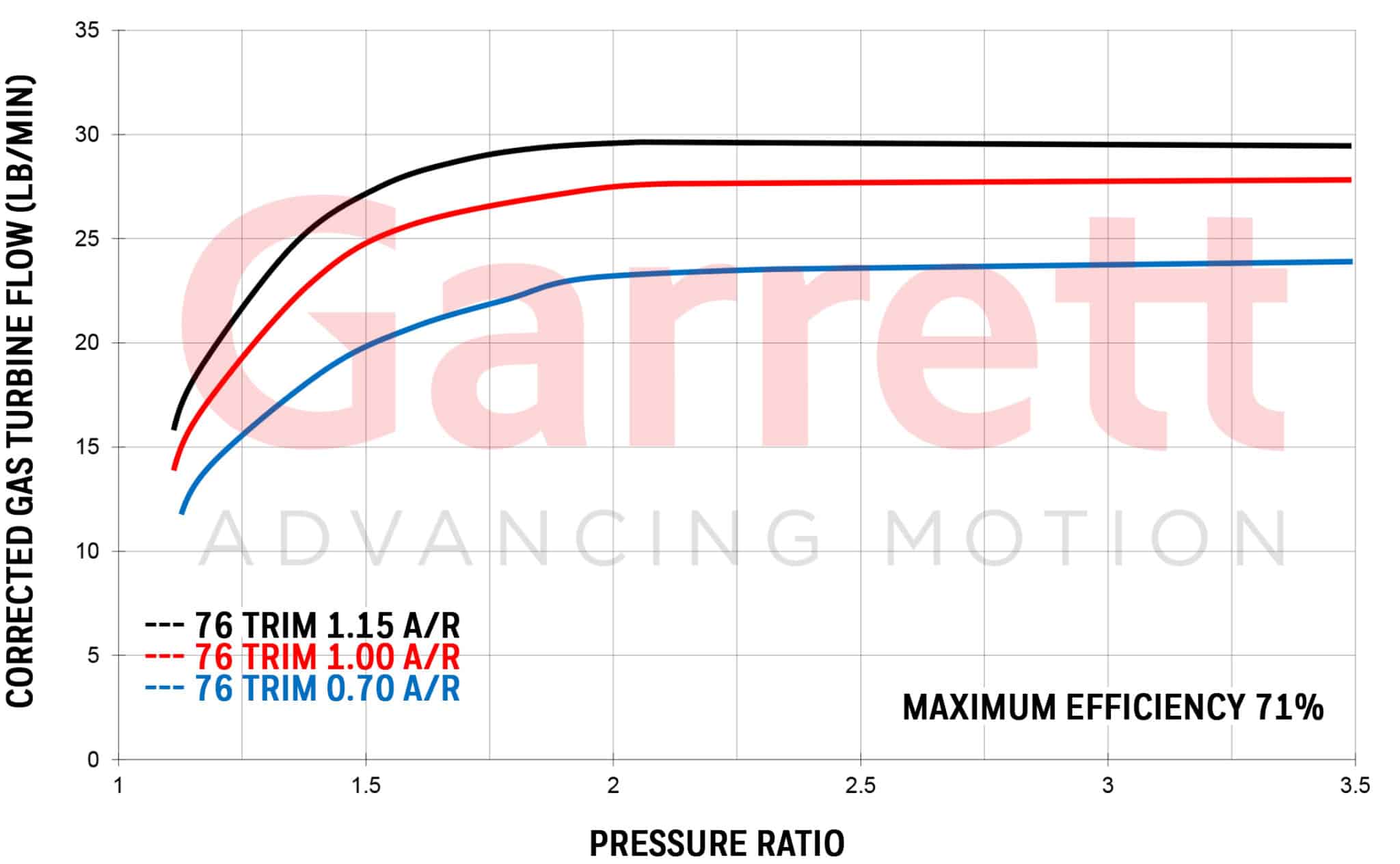

Exhaust Flow Chart

About Garrett® GTW Series Turbochargers

Garrett® GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.

The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.

The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.

More Information
Brand Garrett Motion
