Features
ORIGINAL GT SERIES AERODYNAMICS
60mm TURBOCHARGER COMPRESSOR OPTION
INTERNALLY WASTEGATED TURBINE HOUSING
SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
V-BAND TURBINE HOUSING OPTIONS

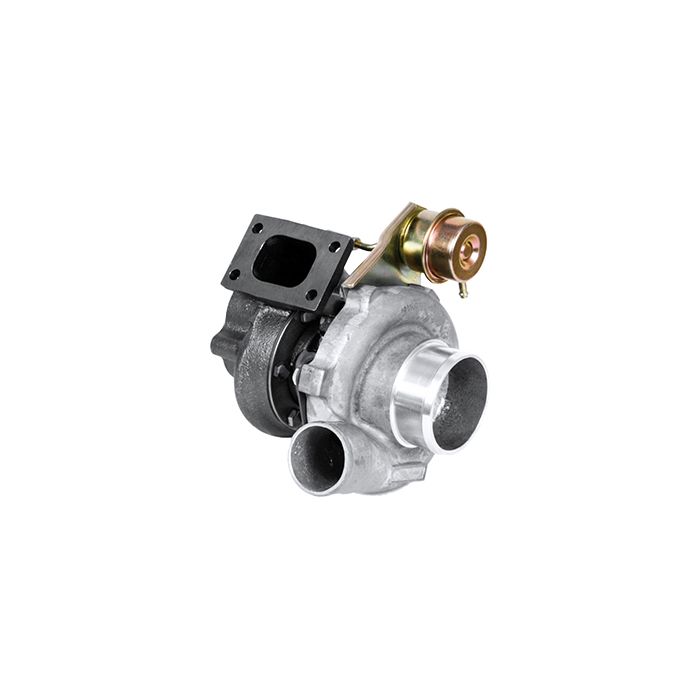

GT2860RS
Reference Data
The latest Garrett technologies featuring many advanced features.
GT2860RS
Compressor
Turbine
HP: 250-360 Disp: 1.8L-3.0L
Inducer
Exducer
A/R
Inducer
Exducer
Trim
A/R
Turbo PN: 836026-5013S
47mm
60mm
0.60
54mm
47mm
76
0.86
Turbo PN: 836026-5014S
47mm
60mm
0.60
54mm
47mm
76
0.64
Turbine Kits: GT28
PN
A/R
Inlet
Outlet
Wastegate
Divided
Kits not directly interchangable. Modifications required to the exhaust system to fit.
827690-0005
0.64
T25
5-Bolt
Wastegated
N
827690-0004
0.86
T25
5-Bolt
Wastegated
N
827690-0001
0.57
V-Band
V-Band
Free Float
N
827690-0002
0.72
V-Band
V-Band
Free Float
N
GT2860RS
Download Section
The latest Garrett technologies featuring many advanced features.
The latest Garrett technologies featuring many advanced features.
Compressor Map
Exhaust Flow Chart
About Garrett® GT Series Turbochargers
Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
