Garrett GTW3884R Super Core (62.3mm ind) CHRA 757197-0012 - 841691-5003S
Special Price$1,465.29Regular Price$2,120.06
sku
grt841691-5003S
Stock is low or unavailable. Please Request Quote for stock status
Unleash the full potential of your vehicle with the Garrett GTW3884R Supercore - 841691-5003S. This high-performance turbocharger is designed for enthusiasts seeking superior power and efficiency.
- **Enhanced Performance**: Boosts horsepower and torque for a thrilling driving experience.
- **Advanced Technology**: Features cutting-edge aerodynamics for optimal airflow.
- **Durable Construction**: Built with high-quality materials for long-lasting reliability.
- **Versatile Fit**: Compatible with a wide range of vehicles for easy installation.
- **Improved Efficiency**: Maximizes fuel efficiency without compromising power.
Elevate your ride with the Garrett GTW3884R Supercore and experience unmatched performance on the road.
Important product information:
Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.
Features
PORTED SHROUD DESIGN FOR SURGE RESISTANCE
AVAILABLE IN 62mm, 64mm, 67mm TURBOCHARGER COMPRESSOR OPTIONS
AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
INCONEL SUPER-ALLOY TURBINE WHEEL
LIGHTWEIGHT ALUMINUM BACKPLATE
GTW3884R 64mm
Reference Data
The latest Garrett technologies featuring many advanced features.
GTW3884R
Compressor
Turbine
HP: 450-950 Disp: 2.0L-6.0L
Inducer
Exducer
Trim
A/R
Inducer
Exducer
Trim
Supercore
PN
Ball Bearing
841691-5003S
62mm
84mm
54
0.70
74mm
65mm
76
Ball Bearing
841691-5004S
64mm
84mm
58
0.70
74mm
65mm
76
Ball Bearing
841691-5005S
67mm
84mm
64
0.70
74mm
65mm
76
Journal Bearing
841297-5003S
62mm
84mm
54
0.70
74mm
65mm
76
Journal Bearing
841297-5004S
64mm
84mm
58
0.70
74mm
65mm
76
Journal Bearing
841297-5005S
67mm
84mm
64
0.70
74mm
65mm
76
Turbine Kits: GTW38
PN
A/R
Inlet
Outlet
Wastegate
Divided
844669-0009
0.96
T4
V-Band
Free Float
N
GTW3884R 64mm
Download Section
The latest Garrett technologies featuring many advanced features.
The latest Garrett technologies featuring many advanced features.

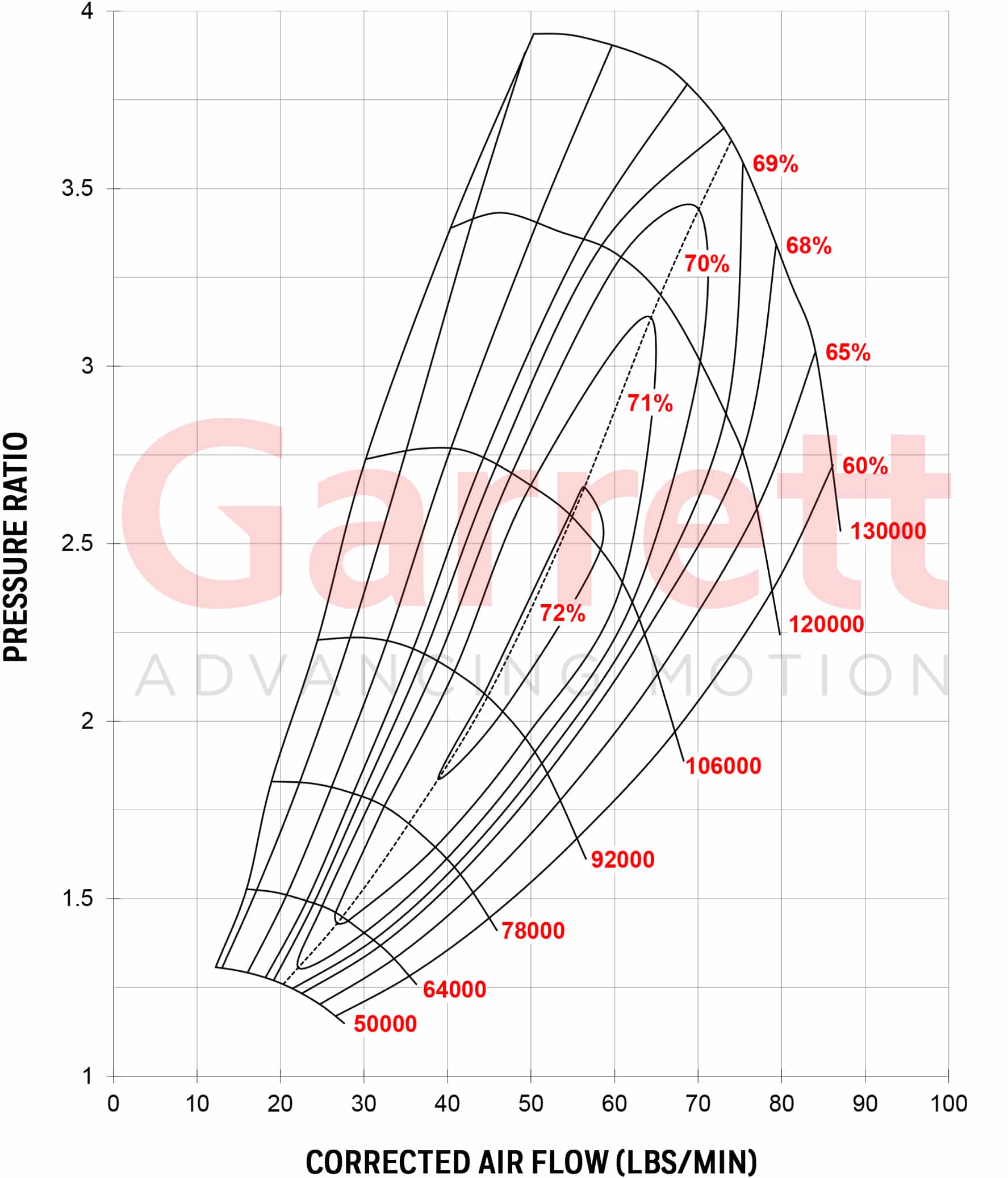

Compressor Map

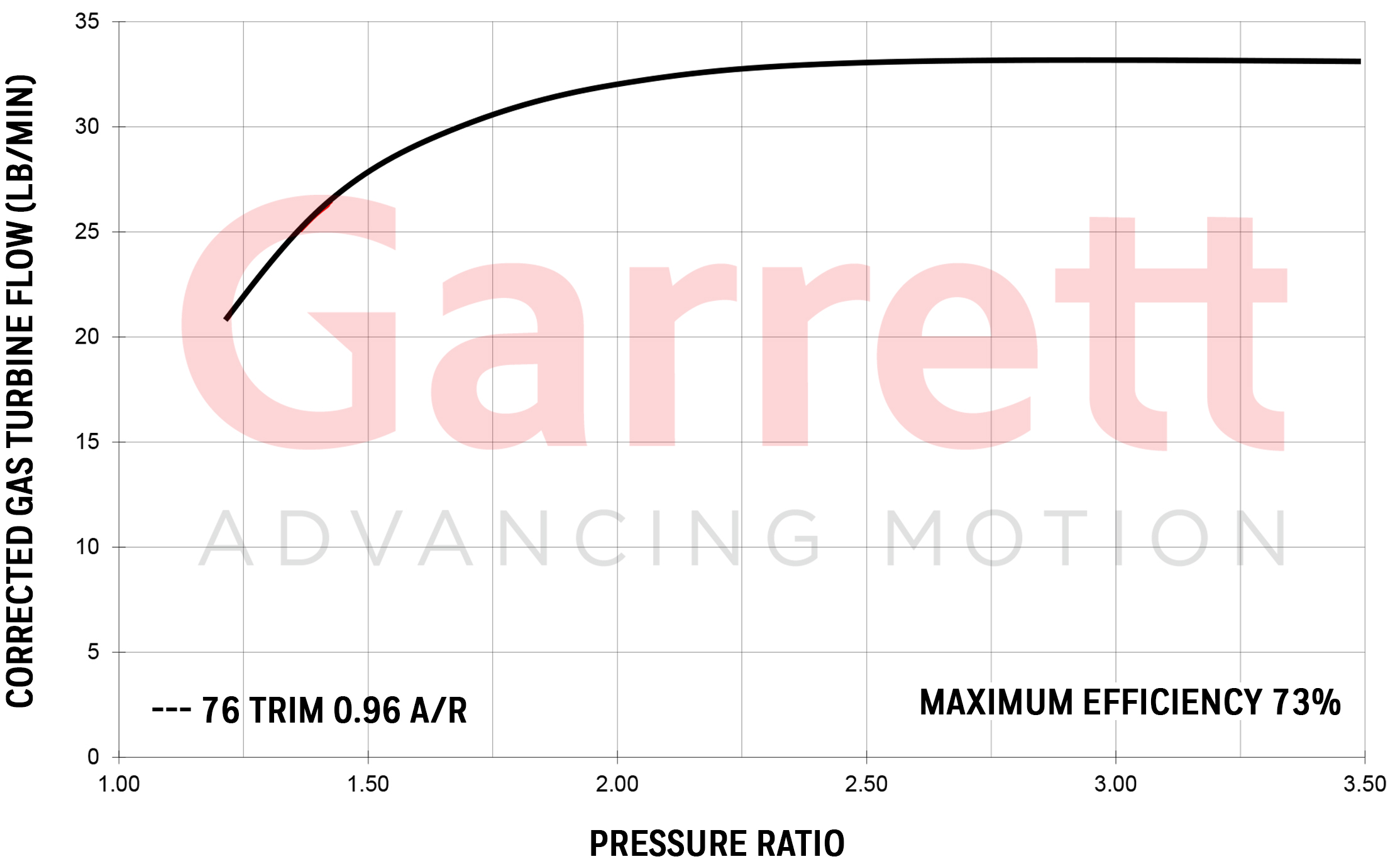

Exhaust Flow Chart
About Garrett® GTW Series Turbochargers
Garrett® GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.
The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.
The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.
