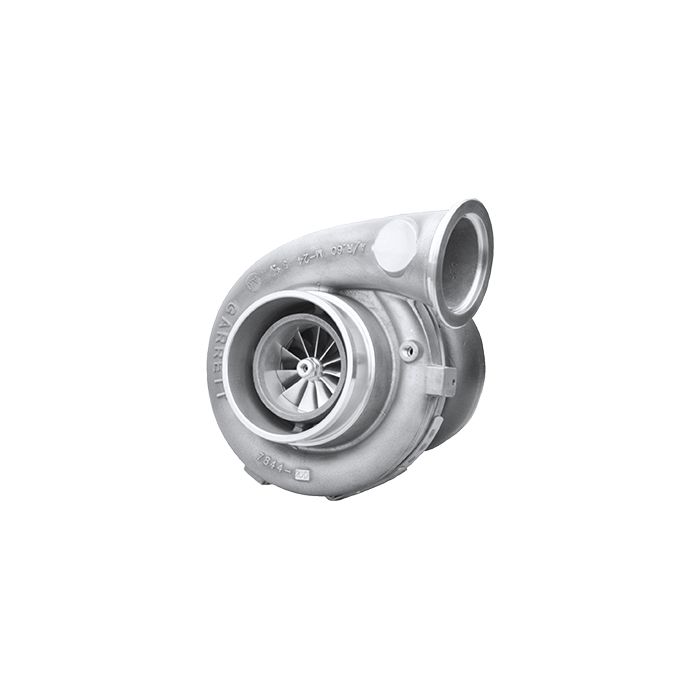

Garrett GTX4202R Super Core CHRA 451888-0044 - 800269-5002S

Special Price $2,052.02 Regular Price $2,977.58
sku
grt800269-5002S
Free Shipping Banner
Stock is low or unavailable.
Please Request Quote for stock status
Unleash the full potential of your high-performance vehicle with the Garrett GTX4202R Supercore - 800269-5002S. Designed for speed enthusiasts, this turbocharger offers: - **Enhanced Power**: Boosts engine performance with superior airflow. - **Advanced Aerodynamics**: Features a billet compressor wheel for maximum efficiency. - **Durability**: Built with high-quality materials for long-lasting reliability. - **Versatile Fit**: Compatible with a wide range of applications. - **Precision Engineering**: Ensures optimal performance and responsiveness. Upgrade your ride with the Garrett GTX4202R and experience unparalleled power and efficiency on the road.

GTX4202R Turbocharger

Horsepower: 525 - 1120

Displacement: 2.0L - 7.0L

Important product information: Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.

Features

  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY
  • AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • 76mm COMPRESSOR INDUCER
  • TURBO OPTION FOR LS ENGINE APPLICATIONS
  • SUPER CORE PART NUMBER: 880269-5002S

GTX4202R 76mm

Reference Data

The latest Garrett technologies featuring many advanced features.


GTX4202R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 525-1120              Disp: 2.0L-7.0L 76mm 102mm 55 0.60 82mm 75mm 84
Supercore PN
Standard Rotation 800269-5002S
Turbine Kits: GTX42 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 4294R
| 4202R Supercores
757707-0001 1.01 T4 V-Band Free Float Y
757707-0002 1.15 T4 V-Band Free Float Y
757707-0003 1.28 T4 V-Band Free Float Y
757707-0004 1.44 T4 V-Band Free Float Y

GTX4202R 76mm

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTX4202R 76mm

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

Compressor Map

Exhaust Flow Chart

About Garrett GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

More Information
Brand Garrett Motion
