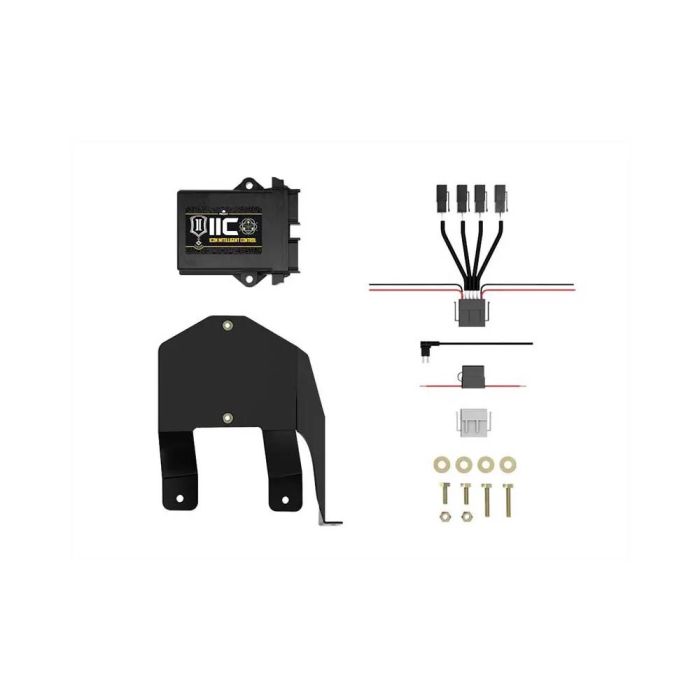

ICON 2015+ Ford F150 / 2017+ Ford F250/F350 IIC Intelligent Control Install Kit - 93500
Please Request Quote for stock status
Upgrade your 2015-Up Ford F-150 or 2017-Up Super Duty with the ICON Intelligent Control Install Kit (ICON-93500). This advanced system offers real-time shock adjustments for a smoother ride and better handling. Key features include:
- Selectable active shock damping and manual adjustments
- Onboard sensors for G-force and chassis movement
- Processes data over 1000 times per second
- Adjusts shocks in under 40 milliseconds
- Bluetooth connectivity to iOS app for monitoring and custom presets
- Data logging for time, speed, distance, and G-force
- Easy installation with specific brackets and hardware
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON's proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2017-UP Ford Super Duty and the 2015-UP Ford F-150 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
View Installation Instructions
Features:
- Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
- Onboard sensors monitor G-forces and movement of vehicle chassis
- Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
- Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
- User interface provided by IIC Mobile App via Bluetooth connection to iOS device
- Mobile app offers preconfigured Drive Modes" as well as the ability to create custom presets
- Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
- Application specific mounting brackets, hardware and wire harnesses
- Connector Gender: Female
- Also Requires Installation Of Cdev Front And Rear Shock Absorbers
- Iic Currently Operates 4 Cdev Equipped Shocks, 2 Fronts (Coilover Or Oe Location) And 2 Rears. Connectivity For Optional Cdev Secondary Front Shocks In Oe Location In Addition To Cdev Coilovers Coming Soon!
- Ford F-250 Super Duty 4WD 17-22
- Ford F-350 Super Duty 4WD 17-22
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103414508 |
