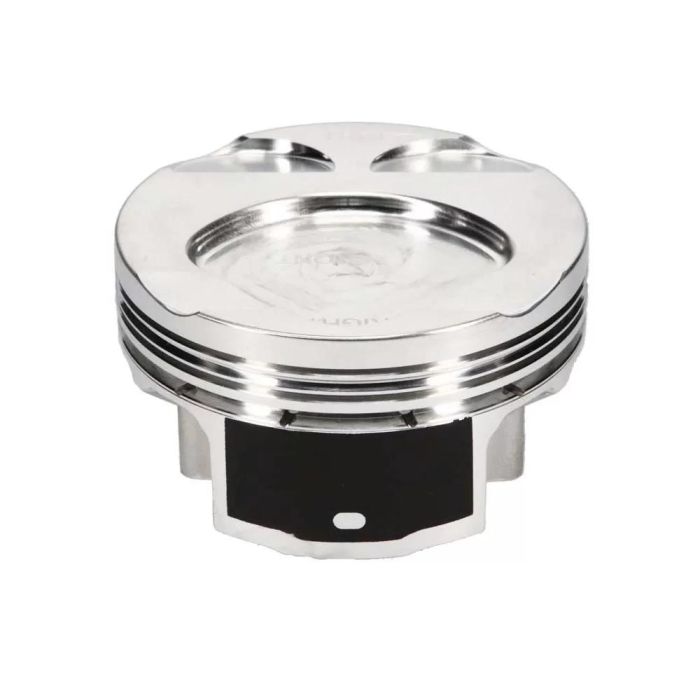

JE Pistons 2012+ Subaru FA20E/FA20F Bore 86, Oversize STD, Stroke 86, 10.0:1 C/R -13.2CC (Set of 4) - 359157
Upgrade your Subaru FA20DIT engine with the JE Pistons Piston Kit. Engineered for high-demand performance, these pistons are forged from 2618 aluminum for superior strength and durability. Designed and manufactured in the USA, they feature a proprietary Forged Side Relief design to minimize friction and power loss. Each kit includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings.
- Forged 2618 aluminum for high tensile strength
- Optimized for specific engine applications
- Minimized friction and power loss
- Includes premium piston rings and wrist pins
- Made in the USA
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- Piston Series: JE Pistons
- Cylinder Head: FA20 DIT
- Bore Diameter: 86.00 MM
- Piston Head Type: Dome
- Compression Height: 1.287 IN
- Piston Volume: -13.20 CC
- Piston Material: 2618
- Piston Quantity: 4
- Forging Type: FSR
- Piston Average Weight: 323 GR
- Ring Set Included: Yes
- Top Compression Ring Thickness: 0.0400 IN
- Second Compression Ring Thickness: 0.0480 IN
- Oil Ring Thickness: 0.111 IN
- Wrist Pin Outer Diameter: 0.866 IN
- Wrist Pin Length: 2.250 IN
- Wrist Pin Wall Thickness: 0.150 IN
| Brand | JE Pistons |
|---|---|
| upc | 193564045232 |
