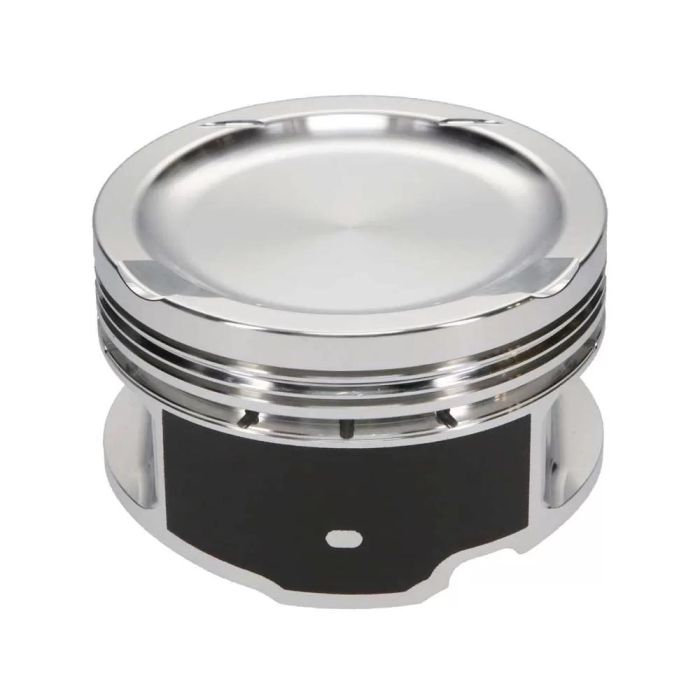

JE Pistons VW 2.0T TSI (22mm Pin) 83mm Bore 9.6:1 CR -7.1cc Dish Piston (Set of 4) - 345814
Upgrade your Volkswagen 2.0T TSI engine with the JE Pistons Piston Kit. Engineered for peak performance and durability, this set of 4 pistons is forged from high-strength 2618 aluminum and crafted entirely in the USA. Perfect for high-demand applications, these pistons ensure optimal power and reliability.
- Forged from 2618 aluminum for superior strength
- Custom-designed for 2.0T TSI engines
- Proprietary Forged Side Relief design reduces friction
- Skirt coating minimizes wear and noise
- Includes premium wrist pins, locks, and piston rings
- 83.00 mm bore, 1.165 in. compression height, -7.80 CC volume
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Features:
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
- Piston Series: JE Pistons
- Cylinder Head: 2.0 TSI
- Bore Diameter: 83.00 MM
- Piston Head Type: Dish
- Compression Height: 1.165 inch
- Piston Volume: -7.80 CC
- Piston Material: 2618
- Piston Quantity: 4
- Forging Type: Round
- Ring Set Included: Yes
- Top Compression Ring Thickness: 0.0400 inch
- Second Compression Ring Thickness: 0.0480 inch
- Oil Ring Thickness: 0.111 inch
- Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
- Wrist Pin Length: 2.250 inch
- Wrist Pin Wall Thickness: 0.150 inch
- Engine Detail: 2.0T TSI 2013-2015 22 mm Pin
- Sold As: Set of 4
| Brand | JE Pistons |
|---|---|
| upc | 193564044754 |
