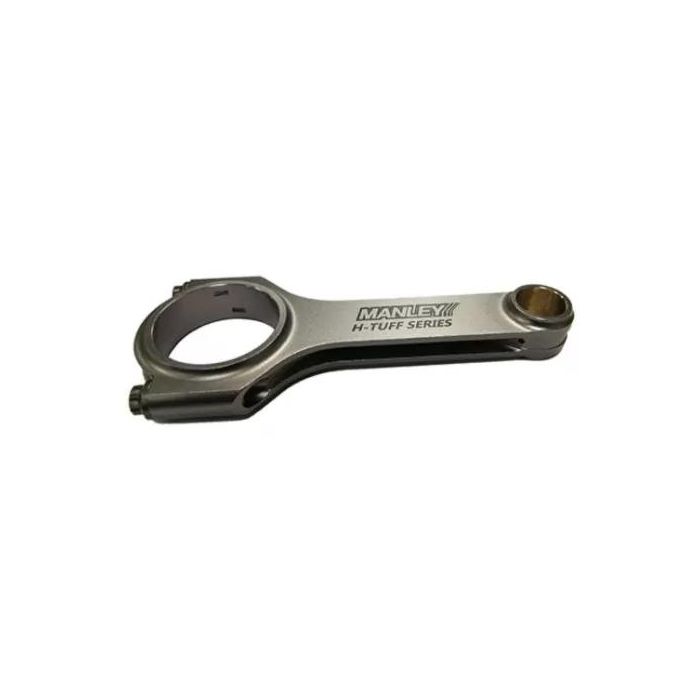

Manley Chevy Small Block LS/LT1 6.125in H Beam Connecting Rod Set w/ ARP2000 Bolts - 14031-8

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled.

Features:

• Cap fasteners are premium 3/8" ARP 2000 with the H-Lites, 7/16" ARP 8740 or optional.
• ARP 2000 with the H-Beams and 7/16" ARP 2000 come standard with the H-Tuffs.
• Flywheel horsepower range for these rods: 600+ HP (3/8" ARP 2000)
• 725 HP (7/16" ARP 8740), 775 HP (7/16" ARP 2000) - Oval Track.
• 750 HP (7/16" ARP 8740), 900 HP (7/16" ARP 2000) - Drag Race.
• 1,000 HP (Oval Track), 1,200+ HP (Drag Race) - H-Tuff.

• Journal Size: Large No Offset
• Center-to-Center: 6.125"
• Big End Bore: 2.225"
• Pin Bore: .9281"
• Gram Weight: 605

• Chevrolet LS H-Lite Series .025" Longer

• H-Lite Series comes standard with ARP2000 Cap Screws. Note: P/Ns 14031, 14033, 14051 and 14053 are for Small Block Chevy LS-1 engines with pistons ready to accept 6.125" length rods. Stock LS-1 rods are 6.100" long. Note the pin bore on the 14031 and 14051-8 is .9281". Stock LS-1 pins are .945" diameter. These rods are also provided with "Low Profile" cap screws enabling extra block and oil pan clearance on stroker applications.
• P/Ns 14031, 14033, 14051 and 14053, 15051R and 15053R are for Small Block Chevy LS / LT1 engines with pistons ready to accept 6.125" length rods. Stock LS / LT1 rods are 6.100" long. Note the pin bore on the 14031, 14051 and 15051R is .9281". Stock LS / LT1 pins are .945" diameter. These rods are also provided with ??Low Profile" cap screws enabling extra block and oil pan clearance on stroker applications.
