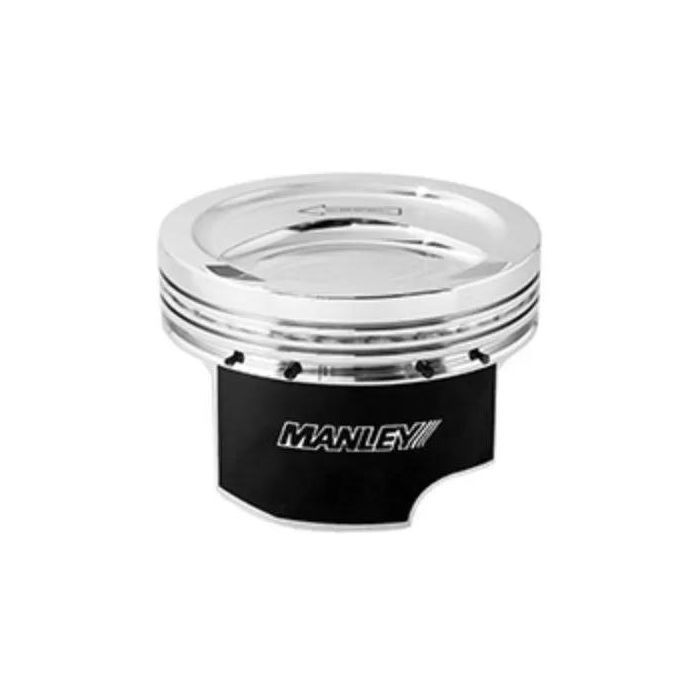

Manley Mazda 94mm 87.5mm Standard Bore 9.5 CR Dish Type Platinum Series Pistons w/Rings - 630000C-4
Upgrade your Mazda MZR 2.3L engine with the Manley 87.5mm STD 9.5 Platinum Series Dish Piston Set. Crafted from high-strength 2618 material, these pistons ensure durability and performance. Enjoy quiet start-ups with the offset wrist pin design and maximize horsepower with perfect ring groove alignment. Each set includes moly coated skirts, premium chrome moly wrist pins, and Total Seal top rings.
- High-strength 2618 material
- Lightweight yet robust design
- Offset wrist pin for quiet start-ups
- Perfect ring groove alignment
- Includes premium chrome moly wrist pins and Total Seal top rings
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.
Features:
- .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248.
- 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42548.
- Pressure balance groove.
- Will accommodate +1mm valve sizes.
- Bore Size (mm): 87.5
- Over Size: STD
- Rod Length: 5.927"
- Stroke: 94
- Comp. Distance: 1.270"
- Dome Volume (cc): -13.3
- Cylinder Head (cc): 42
- Comp. Ratio: 9.5
- Piston Type: Dish
- Pistons Wt / Gms: 372
- Premium Steel Top Rings: 46875-4
- Mazda Speed 3 MZR 2.3L DISI Turbo (.8868"/22.5mm x 2.250" Pin)
| Brand | Manley |
|---|---|
| upc | 807298090313 |
