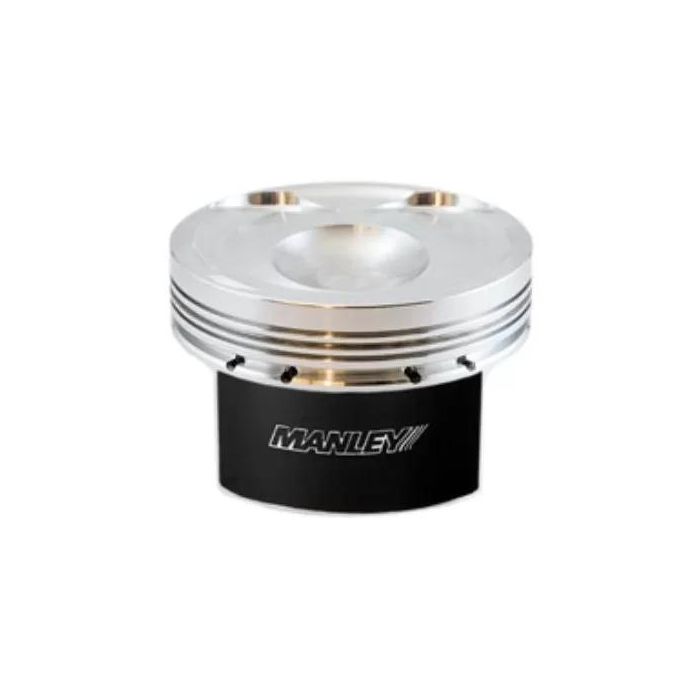

Manley Ford 2.3L EcoBoost 87.5mm STD Size Bore 9.5:1 Dish Extreme Duty Piston Set - 637000CE-4
Upgrade your Ford Focus RS or Mustang with the Manley 87.5mm STD 9.5 2.3L EcoBoost Extreme Duty Dish Piston Set. Crafted from high-strength 2618 material, these pistons are designed for durability and performance.
- Lightweight yet robust for long service life
- Perfect ring groove to skirt squareness for maximum horsepower
- Offset wrist pin design for enhanced performance
- Moly coated skirts for reduced friction
- Includes Total Seal ring package and roundwire locks
- Premium Chrome Moly wrist pins included
- Bore Size: 87.5mm
- Comp Ratio: 9.5
- Piston Type: Dish
- Fits: Ford Focus RS 2016-Up, Mustang 2015-Up
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 2.8mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included in the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Specifications (94mm Stroke):
- Bore Size (mm): 87.5
- Over Size: STD
- Rod Length: 5.875"
- Stroke (mm): 94
- Comp Distance: 1.291"
- Dome Volume (cc): -8
- Comp Ratio: 9.5
- Piston Type: Dish
- Piston Wt/Gms: 382
- Included Ring Set: 46875-4
- Ford Focus RS 2016-Up, Mustang 2015-Up (.886"/22.5mm x 2.250" Pin)
| Brand | Manley |
|---|---|
| upc | 807298095219 |
