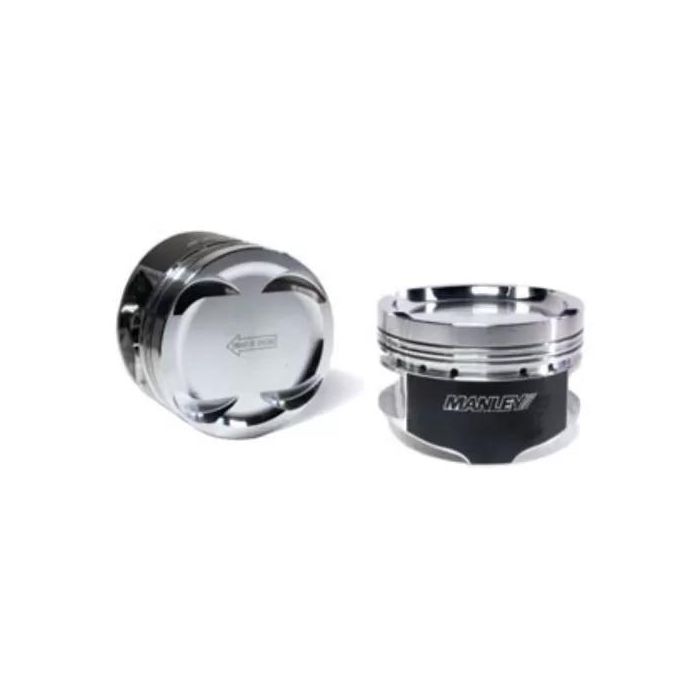

Manley Toyota Supra Turbo (2JZGTE) 87mm +1.0mm Oversized Bore 9:1 Dish Piston Set with Ring - 609015C-6
Upgrade your Toyota Supra Turbo (1993-1998) with the Manley 87mm +1.0mm 9:1 Platinum Series Dish Piston Set. Crafted from high-strength 2618 material, these lightweight yet durable pistons ensure maximum horsepower and longevity. Features include:
- Offset wrist pin for quiet start-ups
- Moly coated skirts for reduced friction
- Perfect ring groove to skirt squareness
- Includes premium chrome moly wrist pins and Total Seal top rings
- Accommodates +1mm valve sizes
Specifications: 87mm bore, 9:1 compression ratio, 359g weight.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts and will accommodate +1mm valve sizes. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available. Simply order the EXTREME DUTY part number in the column below. These are equipped with 9310 pins. Recommended clearance: .0035" measured 1.100" down from the bottom of the oil ring groove.
Specifications (86mm STD Stroke 3.0L):
- Bore Size (mm): 87
- Over Size: +1.0mm
- Rod Length: 5.590"
- Stroke: 86
- Comp. Distance: 1.338"
- Dome Volume (cc): -10
- Cylinder Head (cc): 45
- Comp. Ratio: 9:1
- Piston Type: Dish
- Pistons Wt / Gms: 359
- Premium Steel Top Rings: 46871-6
- Toyota Supra Turbo 1993-1998 - 2JZGTE 3.0L .866"/22mm x 2.250" Pin x .150" Wall
| Brand | Manley |
|---|---|
| upc | 807298083919 |
