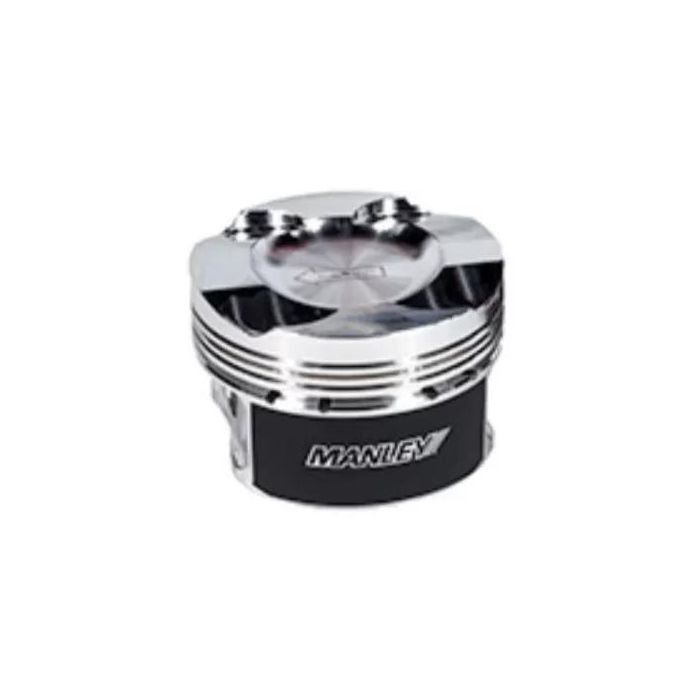

Manley BMW N54B30 32cc Platinum Series Dish Piston Set - 84.5mm Bore - 646005C-6
Upgrade your BMW N54B30 with the Manley 84.50mm +0.5mm 10.2 Dish Piston Set w/ Rings. Crafted from high-strength 2618 material, these pistons are designed for durability and performance.
- Lightweight yet robust for long service life
- Offset wrist pin for quiet start-ups
- Moly coated skirts for reduced friction
- Includes premium chrome moly wrist pins and steel top ring sets
- Perfect ring groove to skirt squareness for maximum horsepower
- Bore Size: 84.50mm
- Over Size: +0.5mm
- Rod Length: 5.709"
- Stroke: 89.6
- Comp. Ratio: 10.2
- Piston Type: Dish
- BMW N54B30
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. Recommended clearance: .0035" measured .850" from the bottom of the oil ring groove.
Specifications:
- Bore Size (mm): 84.50
- Over Size: +0.5mm
- Rod Length: 5.709"
- Stroke: 89.6
- Comp. Distance: 1.252"
- Dome Volume (cc): -16.5
- Cylinder Head (cc): 32
- Comp. Ratio: 10.2
- Piston Type: Dish
- Piston Wt / Gms: 342
- Included Ring Set: 46845-6
- BMW N54B30
| Brand | Manley |
|---|---|
| upc | 807298117836 |
