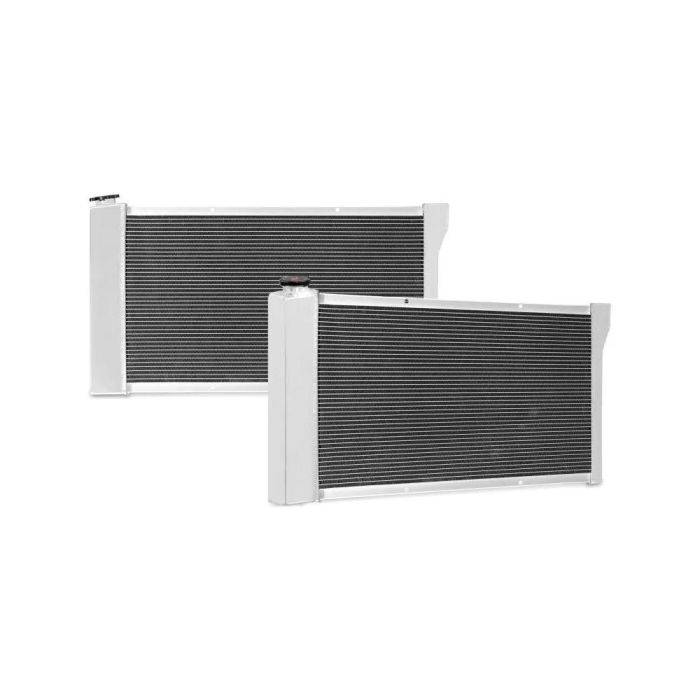

Mishimoto 67-72 GM C/K Truck X-Line Performance Aluminum Radiator - MMRAD-CK-67X

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967-1972 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our aluminum radiators, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Features:

• All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
• 3-row brazed aluminum core with TIG-welded end tanks
• Increased coolant capacity and optimal heat dissipation
• Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• Billet aluminum fill neck
• Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
• Mishimoto Lifetime Warranty

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

• Material: Aluminum
• Overall Height: 34.1
• DPI: 369
• Drain Plug Thread Size: 1/4-18 NPT
• Overall Length: 19.3
• Tank Wall Thickness: 0.08
• Outlet: 1.75
• Rows: 3
• Inlet: 1.5
• Coolant Capacity: 4.87
• Dual Pass: False
• Overall Width: 6.5
• Core Length: 28.3
• Core Height: 16.1
• Core Thickness: 2.5
• Overall Length (in): 19.30
• Overall Height (in): 34.10
• Overall Width (in): 6.50
• Rows: 3

• Engine Codes
  • 250ci (4.1L) L6
  • 292ci (4.8L) L6
  • 283ci (4.6L) V8
  • 307ci (5.0L) V8
  • 327ci (5.4L) V8
  • 350ci (5.7L) V8
  • 402ci (6.6L) V8
• Fits
  • 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8
  • 1969-1972 Chevy Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V81967-1971 GM G Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8
  • 1968-1979 GM P Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
