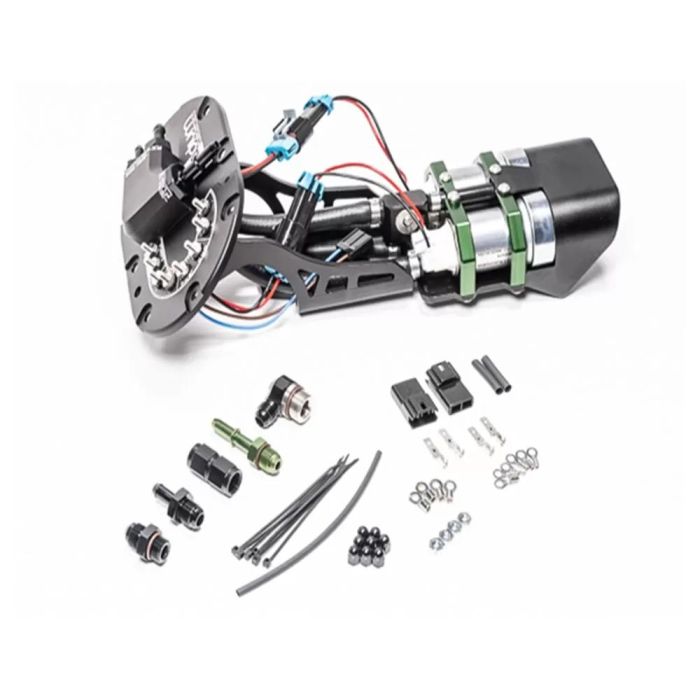

Radium Engineering Fuel Hanger 93-07 Subaru WRX/STi (No Pump Included) WALBRO F90000267/274 E85 - 20-0342-00
Upgrade your Subaru or Saab's fuel system with the Radium Engineering Fuel Hanger. This high-quality assembly fits seamlessly into the factory fuel tank, retaining the fuel level sender and temperature sensors. **Features:** - Anodized aluminum components for durability - Single port outlet with 8AN ORB threads - OEM hose adapter fittings included - Stainless electrical studs for high current demand - Chemically resistant ETFE insulated wiring - Submersible rubber fuel hose - Stainless steel hardware and clamps **Fitment:** - Subaru Legacy (1989-1999) - Subaru Impreza (1993-2007) - Subaru WRX/STi (2002-2007) - Subaru Outback (1994-1999) - Subaru Forester (1997-2008) - Saab 9-2X (2005-2006) *Note: Pumps not included.*
The machined assembly mounts in the factory fuel tank using the OEM gasket and hardware. The fuel level sender and temperature sensors are retained.
The pumps merge into a single port outlet with 8AN ORB threads. The crossover and return uses 6AN ORB threaded ports. To simplify plumbing, the kit includes OEM hose adapter fittings for all model years listed. Shown below is for mid model years which use a SAE quick disconnect fuel feed. There is also a return line SAE quick disconnect fitting included for newer models. Lastly, -6AN male fittings are included for those that use aftermarket feed and return hoses.
The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits.
Furthermore, the high quality in-tank wiring is insulated with chemically resistant ETFE. Stainless steel crimp-on ring terminals and heat shrink are provided for external wiring connections.
Fitment:
- Subaru Legacy (All) 1989-1999
- Subaru Impreza 1993-2007
- Subaru WRX 2002-2007
- Subaru STi 2002-2007
- Subaru Outback (All) 1994-1999
- Subaru Forester (All) 1997-2008
- Saab 9-2X 2005-2006
- Anodized Aluminum Laser Etched Plate
- Anodized Aluminum Collector Box and Check Valve
- Anodized Aluminum Venturi Jet Pump
- Anodized Aluminum Fittings for All Model Years
- Anodized Aluminum Dual Pump Mounts
- ETFE Wire with Stainless Steel Terminals
- Submersible Rubber Fuel Hose
- Stainless Steel Hardware and Clamps
Pumps Not Included
| Brand | Radium Engineering |
|---|
