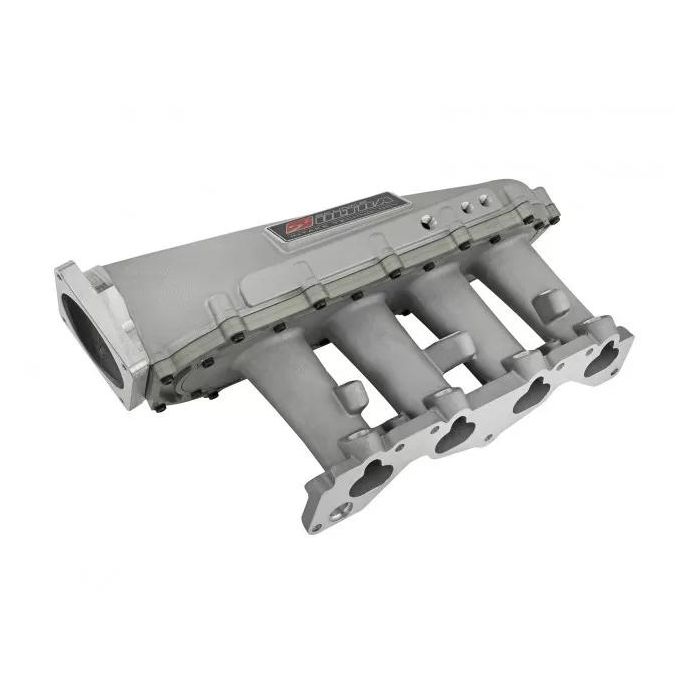

Skunk2 Ultra Series D Series Race Intake Manifold - 3.5L Silver Manifold - 307-05-9200
Elevate your Honda Civic or CRX's performance with the Skunk2 Silver D VTEC Ultra Race Intake Manifold. Engineered for the D16Z6 and D16Y8 engines, this manifold offers superior airflow and power gains. Key features include:
- Modular 3-piece design with removable plenum
- 3.5L plenum volume
- 90mm throttle body flange
- 6.7" tapered high-velocity runners
- Raised 81mm velocity stacks
- Provisions for secondary fuel rail and injectors
- High-grade mounting hardware
- Thermal gasket included
Compatible with Honda Civic (88-00), Civic del Sol (93-97), and CRX (88-91).
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda D16Z6 and D16Y8!
The much anticipated Ultra Race Intake Manifold for the single cam D Series is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 3.5L Plenum Volume**
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.7" Tapered Hi-Velocity Runners
- Raised 81mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- 4 x 1/8" NPT, 3 x 1/4" NPT, and 1 x OEM AIT Port
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- Fits MOST Popular Chassis Configurations
- Honda Civic (Cx, Dx, Ex, Gx, Hx, Lx, Cx, Dx, Ex, Gx, Hx, Lx) 88-00
- Honda Civic del Sol (S, Si, S, Si) 93-97
- Honda CRx (Base, HF, Si, Base, HF, Si) 88-91
- US Patent: US D673977
| Brand | Skunk2 |
|---|---|
| upc | 873265012664 |
