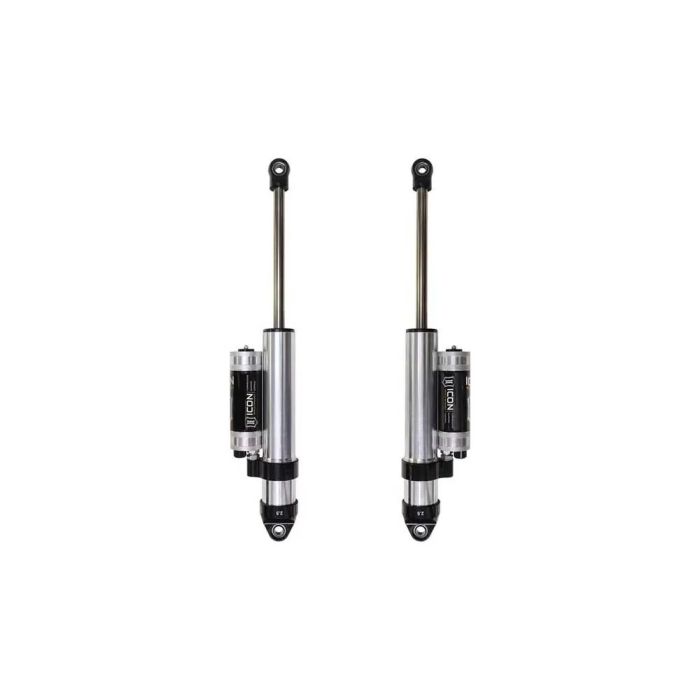

ICON 2019+ GM 1500 0-2in Rear 2.5 Series Shocks VS PB CDCV - Pair - 77703CP

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal "Bump Zone" that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: Eyelet

• Compatible With 0-2" Of Rear Lift On Most Models. Not Recommended With Any Additional Rear Lift On Silverado 1500 Trail Boss And Sierra 1500 At4.
• May Require Slight Modifications To Rear Shock Absorber Mounts
• Not Compatible With 22-23 Chevrolet Silverado 1500 Zr2 Or 22-23 Gmc Sierra 1500 At4X
• Not Compatible With Models Equipped With Adaptive Ride Control (Arc)

• Chevrolet Silverado 1500 LTD WT 2022-2022
• Chevrolet Silverado 1500 LTD RST 2022-2022
• Chevrolet Silverado 1500 LTD LTZ 2022-2022
• Chevrolet Silverado 1500 LTD Custom Trail Boss 2022-2022
• Chevrolet Silverado 1500 LTD LT 2022-2022
• Chevrolet Silverado 1500 LTD LT Trail Boss 2022-2022
• Chevrolet Silverado 1500 LTD SSV 2022-2022
• Chevrolet Silverado 1500 LTD Custom 2022-2022
• Chevrolet Silverado 1500 LTD High Country 2022-2022
• Chevrolet Silverado 1500 LT Trail Boss 2019-2023
• Chevrolet Silverado 1500 RST 2019-2023
• Chevrolet Silverado 1500 LTZ 2019-2023
• Chevrolet Silverado 1500 Custom 2019-2023
• Chevrolet Silverado 1500 Custom Trail Boss 2019-2023
• Chevrolet Silverado 1500 LT 2019-2023
• Chevrolet Silverado 1500 WT 2019-2023
• Chevrolet Silverado 1500 SSV 2019-2021
• Chevrolet Silverado 1500 WT Cab Regular 2019-2020
• Chevrolet Silverado 1500 High Country 2019-2023
• Chevrolet Silverado 1500 WT Doble Cabina 2019-2020
• Chevrolet Silverado 1500 Base 2023-2023
• Chevrolet Silverado 1500 PPV 2023-2023
• GMC Sierra 1500 Limited Elevation 2022-2022
• GMC Sierra 1500 Limited Pro 2022-2022
• GMC Sierra 1500 Limited SLE 2022-2022
• GMC Sierra 1500 Limited SLT 2022-2022
• GMC Sierra 1500 Limited AT4 2022-2022
• GMC Sierra 1500 Elevation 2019-2023
• GMC Sierra 1500 SLT 2019-2023
• GMC Sierra 1500 SLE 2019-2023
• GMC Sierra 1500 AT4 2019-2023
• GMC Sierra 1500 Base 2019-2021
• GMC Sierra 1500 Pro 2022-2023
