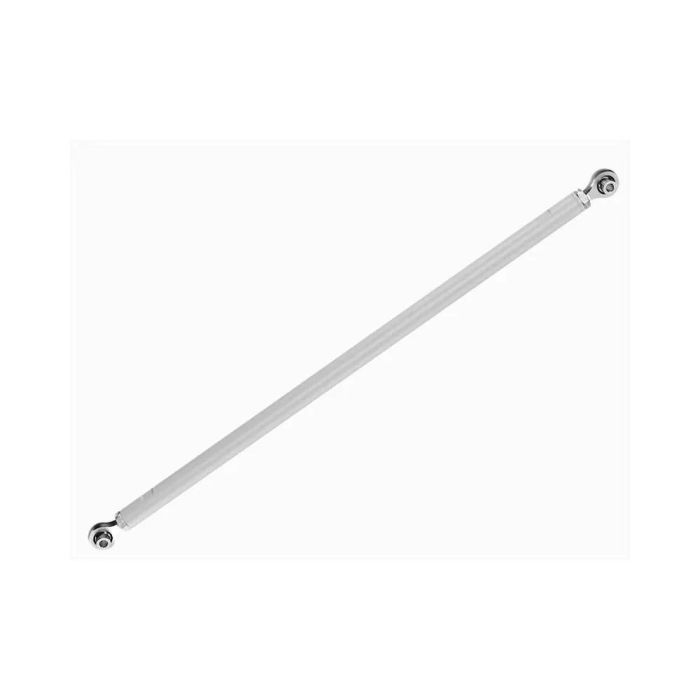

ICON 2022+ Toyota Tundra Billet Rear Adj Track Bar Kit - 54202

The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2023 Toyota Tundra or 2023 Toyota Sequoia. Threaded rod ends allow easy on-vehicle" fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links. Hit the trail with the confidence of knowing your suspension components are covered by ICON's Limited Lifetime Warranty.

View Installation Instructions

Features:

• Vehicle specific design for 22-23 Toyota Tundra/2023 Toyota Sequoia
• Helps to free up bind during rear suspension travel and articulation
• Heavy duty PTFE-lined FK Rod Ends offer minimal deflection and maximum articulation
• On-vehicle adjustable for precise track alignment
• CNC machined 6061 aluminum bar
• Satin anodized finish to match appearance of ICON rear upper and lower links
• Covered by ICON's Limited Lifetime Warranty

• Adjustable: Yes
• Bushing Color: Silver
• Bushing Material: Rod End Bearing
• Bushings Included: yes
• Color: Silver
• End 1 Type: Rod End Bearing
• End 2 Terminal Type: Rod End Bearing
• Finish: Aluminum
• Grade Type: Performance
• Grease Fitting Included: No
• Greaseable: No
• Material: Aluminium
• Mounting Hardware Included: Yes

• Compatible With 0-2" Of Rear Lift Over Stock On Rear Coil Equipped Tundras Or 0-4" Of Rear Lift Over Stock On Rear Air Equipped Tundras
• Compatible With 0-4.5" Of Rear Lift Over Stock On Sequoias

• Toyota Tundra SR5 2022-2023
• Toyota Tundra Limited 2022-2023
• Toyota Tundra Platinum 2022-2023
• Toyota Tundra SR 2022-2023
• Toyota Tundra 1794 Edition 2022-2023
• Toyota Tundra Capstone 2022-2023
• Toyota Tundra TRD Pro 2022-2023
• Toyota Tundra SR TRD Off-Road 2022-2022
• Toyota Tundra Limited TRD Off-Road 2022-2022
• Toyota Tundra SR5 TRD Off-Road 2022-2022
• Toyota Tundra Platinum 1794 Edition 2022-2022
• Toyota Sequoia Capstone 2023-2023
• Toyota Sequoia Limited 2023-2023
• Toyota Sequoia Platinum 2023-2023
• Toyota Sequoia SR5 2023-2023
• Toyota Sequoia TRD Off-Road 2023-2023
• Toyota Sequoia TRD Pro 2023-2023
