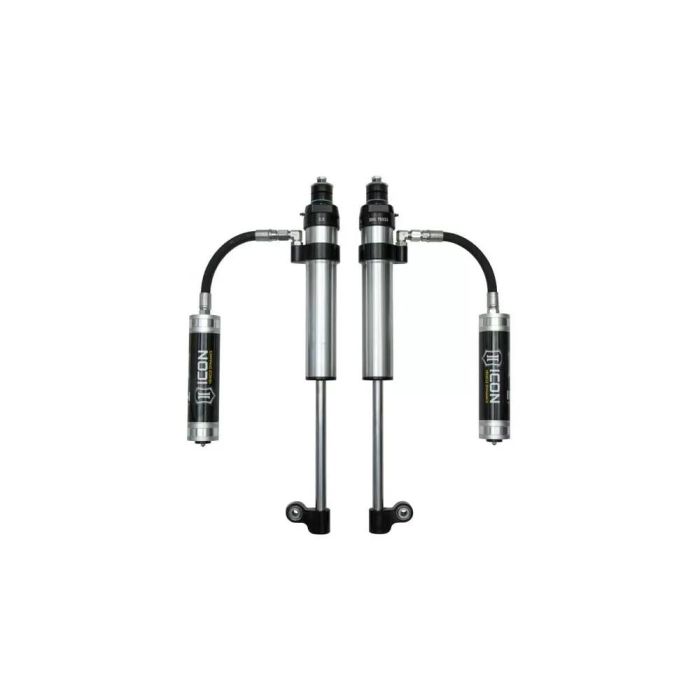

ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR - Pair - 57826P
Upgrade your Toyota Tacoma with ICON's 2.5 RTX Omega RR Shocks for superior off-road performance and a smooth street ride. These shocks feature:
- One-piece impact extruded aluminum cylinders for corrosion resistance
- Internal "Bump Zone" for 20% increased damping
- Remote reservoir design to reduce shock fade
- 100% rebuildable and revalveable
- Premium grade 5WT shock oil for consistent damping
- 7/8" chrome plated shock shaft
ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks
View Installation Instructions
Features:
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable: NO
- Boot Included: NO
- Bore Diameter: 2.25 IN
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 611008 - 9/16 RXT HEAVY DUTY STEM BUSHING KIT
- Service Parts: 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Tube Outside Diameter: 2.5 IN
- Upper Mount Type: Stem
- Icon Multi-Rate Leaf Springs Part # 158505 Required For Installation
- Toyota Tacoma Base 4WD 2005-2015
- Toyota Tacoma Pre Runner 2005-2015
- Toyota Tacoma SR5 Prerunner 2006-2009
- Toyota Tacoma TRD Sport Prerunner 2006-2009
- Toyota Tacoma Base Prerunner 2006-2006
- Toyota Tacoma TRD Sport 2010-2022
- Toyota Tacoma TRD Pro 2015-2022
- Toyota Tacoma Limited 2016-2022
- Toyota Tacoma SR 2016-2022
- Toyota Tacoma SR5 2016-2022
- Toyota Tacoma TRD Off-Road 2016-2022
- Toyota Tacoma Edicion Especial 2016-2022
- Toyota Tacoma Sport 17-22
- Toyota Tacoma Nightshade 2021-2022
- Toyota Tacoma Trail 2021-2021
