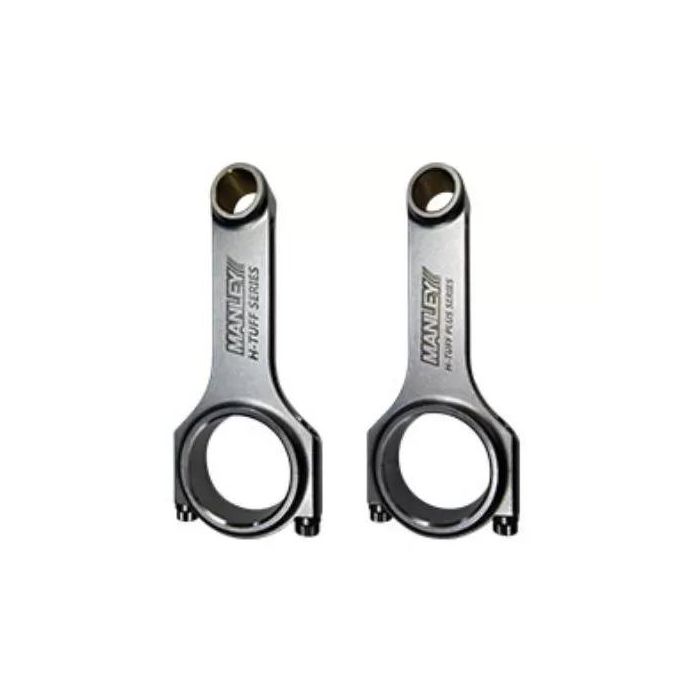

Manley 5.090" Pin Bore .8671" H - Tuff Plus Connecting Rod Set Subaru BRZ | WRX 2013+- MANL-15084R6-

Today, Manley Performance continues to re-define itself in a high performance aftermarket industry that is constantly evolving. We've developed new products for growing markets such as sport compact, Ford modular and Chevy LS as well as maintained our leadership role with the traditional V-8 engine business.

Features:

• Manufactured from 4340 forgings.
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed.
• Weight matched sets " 1.5 grams.
• Cap fasteners are 3/8" ARP 2000 for the H-Tuff and 3/8" ARP Custom Age 625" for the H-Tuff Plus.
• Flywheel horsepower range for the these rods in a 4 cylinder application is 750 with the ARP 2000 bolts and 950 with ARP 625" bolts.
• Bridges the gap between our standard, proven H-Beams and top of the line, best of the best Turbo Tuff?? Series rods.
• H-Tuff delivers a stronger rod with greater safety margin to handle elevated boost and higher power levels for a modest price premium over standard H-Beams.
• H-Tuff design incorporates wider beam and increased cross-sectional thickness in critical areas.

• Center-to-Center: 5.090"
• Big End Bore: 2.087"
• Big End Width: .843"
• Pin Diameter: .866" (22mm)
• Pin Bore: .8671"
• Gram Weight: 605

• Subaru FA20 BRZ 2.0L 2013 Up | WRX 2015 Up
