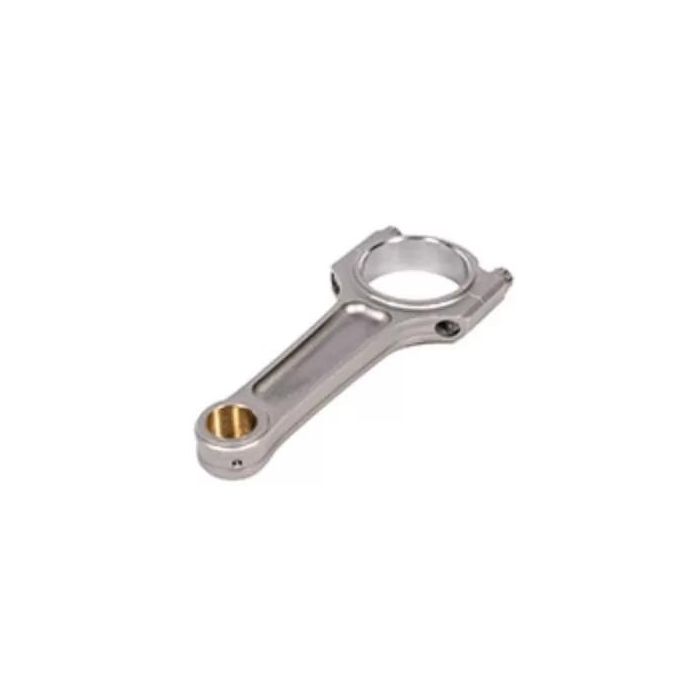

Manley BMW 5.709 T/T N54 Connecting Rod Set - 14448-6
Manley "I" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Bend and twist is tightly controlled. Weight matched to +/- 1.5 grams. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.
Feautes:
- Forged from 4340 aircraft quality vacuum degassed material.
- Shot peened after machining to MIL spec and 100% individually magnafluxed.
- Specifically designed to handle high horsepower applications when using turbos and/or nitrous.
- Fasteners are 3/8".
- Flywheel horsepower range for these rods in a 6 cylinder application the range is 1,250+.
- Center-to-Center: 5.709"
- Big End Bore: 2.110"
- Big End Width: .823"
- Pin Diameter: .866" (22mm)
- Pin Bore: .8671"
- Gram Weight: 560
- BMW N54B30 (2006-2016)
- Sold as a Set of 6
