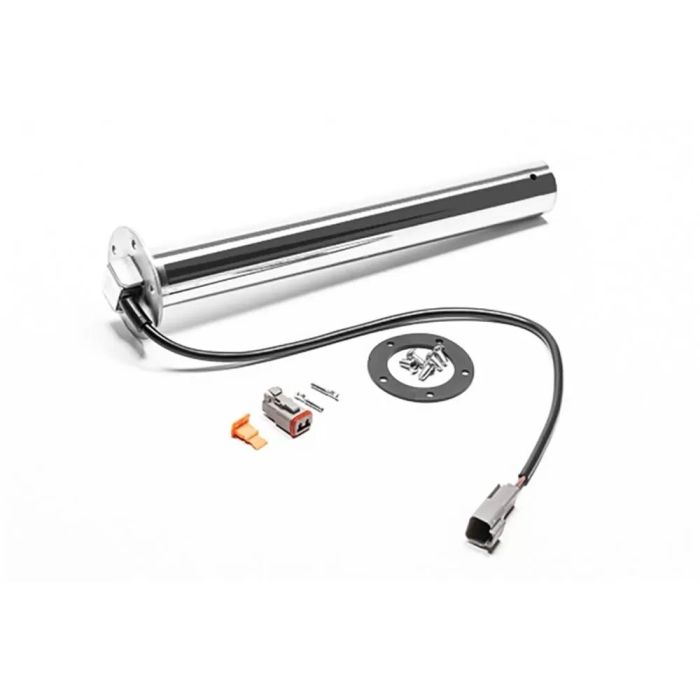

Radium Engineering SAE Fuel Level Sender 0-90 ohm 11.7IN - Shrouded - 20-0847-297

$94.95
sku
rad20-0847-297
Free Shipping Banner
More than 2 in stock
Upgrade your vehicle's fuel system with the Radium Engineering 0-90Ohm 11.7In Shrouded SAE Fuel Level Sender. Designed for precision and durability, this fuel level sender ensures accurate readings and reliable performance. - **Precision Measurement**: Provides accurate fuel level readings for optimal vehicle performance. - **Durable Construction**: Built with high-quality materials to withstand harsh conditions. - **Universal Fit**: Compatible with a wide range of vehicles for versatile use. - **Easy Installation**: Comes with a shrouded design for straightforward setup. - **Reliable Performance**: Ensures consistent and dependable fuel level monitoring. Enhance your driving experience with this essential fuel system component.

This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank.Full stainless steel sealed construction with magnetic float.

Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.

Specifications:

  • probe Material: 304 Stainless Steel
  • Float Material: Plastic Buna-N
  • Mounting Flange: 5-Bolt SAE
  • Mounting Gasket: FKM
  • Resistance: 0 (Empty)-90 (Full) Ohms
  • Pvc Wires: 18" (460mm) with PA Cover
  • Connectors: Deutsch DT, 2P
  • Operating Temp: -40F to +185F
Included:
  • Level Sensing Probe
  • SAE 5-Bolt Gasket
  • Stainless Bolts 10-32 (x5)
  • Deutsch DT 2P Connector
  • Deutsch DT Sockets (x2)
Notes:
  • All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
  • Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
  • To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
  • If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
  • If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter,
Attention:
  • Non-shrouded Radium 20-0747-203 and 20-0747-297 level senders are compatible with all Radium FCST part numbers.
More Information
More Information
Brand Radium Engineering
