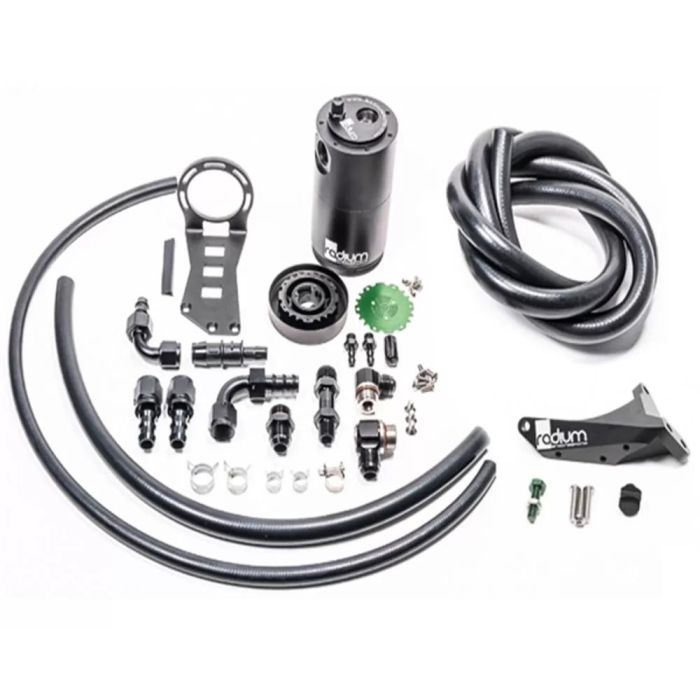

Radium Engineering 2015+ Subaru WRX Air Oil Separator Kit (INCLUDES 20-0255) - 20-0258-00
High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering Subaru Dual Catch Can Kit, the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS system returns what is collected back into the oil pan so there is no servicing required. The built-in heater keeps water from condensing in the AOS. And because water is more dense than oil, there is an integrated water trap found around the bottom perimeter of the can. This prevents water from descending into the oil pan if ever present. Furthermore, because the water is trapped against the heater, it will eventually boil and evaporate out of the system.
Benefits:
- Effectively raises the fuel octane and increases engine performance with cleaner inlet air
- Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
- Lowers hydrocarbon emissions
- The Radium Engineering AOS kit installs on the LH side of the engine bay, near the brake master cylinder. The outlet (side port) of the AOS is plumbed back to the turbo inlet pipe, creating a completely sealed system. The AOS mounts to the Radium Brake Master Cylinder Brace. This brace is REQUIRED for installation. The PCV valve is replaced by a custom machined straight-through adapter fitting, shown below. Oil collected in the AOS drains out the bottom fitting and back into the engine block through this fitting.
- If operated in freezing environments, Radium Engineering recommends installing insulation sleeving (not included) over any hose exposed to cold air flow. This will help prevent the naturalphenomenon of water condensation freezing and potentially clogging the hose.
- Subaru WRX 2015+
- Subaru Forester XT 2014-2018
High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering Subaru Dual Catch Can Kit, the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS system returns what is collected back into the oil pan so there is no servicing required. The built-in heater keeps water from condensing in the AOS. And because water is more dense than oil, there is an integrated water trap found around the bottom perimeter of the can. This prevents water from descending into the oil pan if ever present. Furthermore, because the water is trapped against the heater, it will eventually boil and evaporate out of the system.
Benefits:
- Effectively raises the fuel octane and increases engine performance with cleaner inlet air
- Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
- Lowers hydrocarbon emissions
- The Radium Engineering AOS kit installs on the LH side of the engine bay, near the brake master cylinder. The outlet (side port) of the AOS is plumbed back to the turbo inlet pipe, creating a completely sealed system. The AOS mounts to the Radium Brake Master Cylinder Brace. This brace is REQUIRED for installation. The PCV valve is replaced by a custom machined straight-through adapter fitting, shown below. Oil collected in the AOS drains out the bottom fitting and back into the engine block through this fitting.
- If operated in freezing environments, Radium Engineering recommends installing insulation sleeving (not included) over any hose exposed to cold air flow. This will help prevent the naturalphenomenon of water condensation freezing and potentially clogging the hose.
- Subaru WRX 2015+
- Subaru Forester XT 2014-2018
| Brand | Radium Engineering |
|---|
