Radium Engineering BMW Fuel Hanger Feed w/ Microglass Filter - 20-0475-05
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
The Radium Engineering FHST (fuel hanger surge tank) is compatible with all BMW E90/92/93 3-series with the N54 or N55 engine.
NOTE:
This system is compatible with the E90/92/93 M3 fuel tank, however the stock M3 fuel pump cannot be controlled with the factory fuel pump controller, advanced system modifications are required to overcome this issue. This is not covered in the installation instructions and is up to the installer to devise a solution. The Fuel Feed Kit is NOT compatible with the M3.
Overview
The Radium Fuel Hanger Surge Tank is a revolutionary way to eliminate fuel starvation that can occur during high performance driving, while also providing a way to upgrade the fuel pumps for high-horsepower engine modifications. This system installs inside the BMW fuel tank on the opposite side of the factory fuel pump and can hold one or two high-flow aftermarket fuel pumps. The stock fuel pump is used to pump fuel into the FHST, while the pumps inside the FHST then supply fuel to the engine. The system is E85 compatible and does not require any permanent modifications for installation.Read below to see how the FHST works.
BMW Fuel Tank
The OEM saddle bag fuel tank is quite complex. The venturi jet pump is driven by the feed line instead of the return (M3 has 2 venturi jet pumps). The post pump filter and FPR are integrated into the LH side of the tank where the FHST mounts.
Radium FHST
When these BMWs experience high lateral Gs, they inherently suffer from fuel slosh. The FHST is the best solution in preventing fuel starvation. As described below, the FHST pump(s) are supplied with fuel from 3 different sources: the OEM electric "lift" pump, the fuel pressure regulator (FPR), and the integrated 1-way valve.
Note:
note that the BMW fuel pump is still retained but is now repurposed as a "lift" pump to fill and maintain volume in the FHST. The lift pump fills the FHST canister through a special orifice in the FHST. This keeps the required pressure for the venturi jet pump(s) to be active and deliver fuel to the lift pump. When a low demand of fuel is present, the FHST canister will overflow back into the LH side of the OEM tank. Fuel will then cycle back into the FHST through a 1-way valve integrated to the bottom of the FHST. Unlike traditional surge tanks that rely heavily on surge tank pump and lift pump flow matching, the FHST uses an extra source that negates this important relationship. No matter what is dynamically changing with the other 2 fuel sources, the high flowing 1-way valve will constantly supply fuel to the FHST canister until the LH side of the gas tank becomes extremely low. At this point, it is up to the lift pump and the FPR to supply the last few ounces of fuel to the FHST.
Integrated Fuel Pressure Regulator
Like OEM, a fuel pressure regulator (FPR) is integrated into the unit. Furthermore, if an intake manifold signal is installed, this FPR can operate at a 1:1 ratio permitting fuel pressure to proportionally increase with boost pressure. The returning low pressure fuel from the FPR is sent back into the FST canister keeping it full. A 6-hole diverter evenly disperses fuel inside the canister preventing air bubbles and foaming. Also, 2 fuel return orifices are included for fine-tuning the desired fuel pressure to the fuel pumps' flow rate.
Features
- Drop-In OEM Replacement
- Permits 1 or 2 Surge Pumps
- 1:1 Fuel Pressure Adjustments
- Fuel Starvation Protection
- Integrated 1-Way Fill Valve
- High Current Electrical Hardware
- Compatible with Various Pumps
- Anodized Aluminum Construction
- Gasoline and Ethanol Compliant
- Anodized Aluminum 8AN Male Outlet Fitting
- Anodized Aluminum Surge Tank Canister
- Fuel Resistant Tubing and Wiring
- Stainless Steel Hardware
- Relay(s) and Fuse(s)

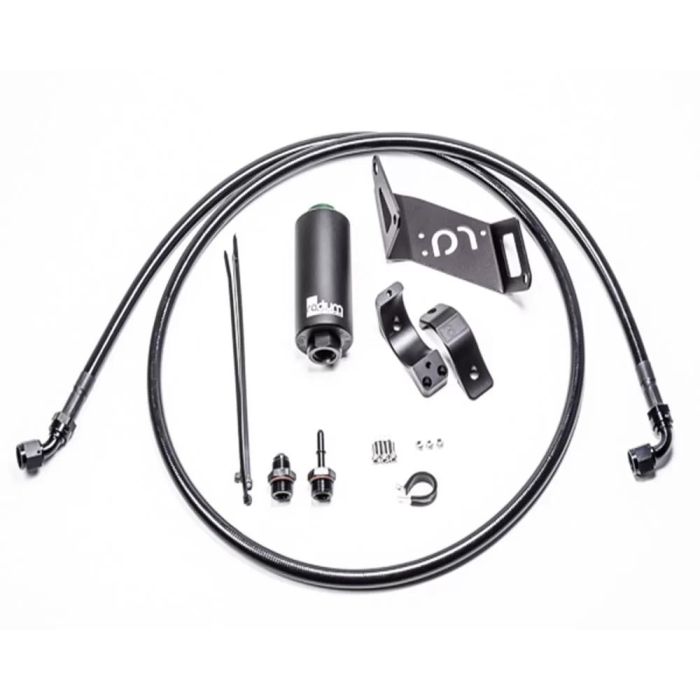

The kit will come partially assembled as shown above. There will be enough components included with this option to run one or two surge tank fuel pumps.
Fitment:
- BMW 335i 2007-2016
- BMW 335is 2011-2013
Elevate Your BMW 335i's Performance with the Radium Engineering Fuel Hanger Feed Microglass Filter
Unlock the full potential of your BMW 335i with the Radium Engineering Fuel Hanger Feed Microglass Filter, specifically designed for models from 2007 to 2016. This high-performance component is engineered to enhance your vehicle's fuel system, ensuring optimal efficiency and reliability. Whether you're a seasoned car enthusiast or a novice looking to upgrade your ride, this filter offers a seamless blend of advanced technology and user-friendly design.
Features and Benefits of the Radium Engineering Fuel Hanger Feed Microglass Filter BMW 335i | 335i 2007-2016- RADI-20-0475-05
- Superior Filtration Technology: The microglass filter media is at the heart of this product, providing exceptional filtration capabilities. It effectively captures contaminants and impurities, ensuring that only clean fuel reaches your engine. This not only enhances performance but also extends the life of your engine by preventing wear and tear.
- Enhanced Fuel Flow: Designed to optimize fuel flow, this filter ensures that your BMW 335i receives a consistent and uninterrupted supply of fuel. This results in smoother acceleration and improved overall performance, making every drive a pleasure.
- Durable Construction: Built with high-quality materials, the Radium Engineering Fuel Hanger Feed Microglass Filter is designed to withstand the rigors of daily driving. Its robust construction ensures long-lasting durability, providing peace of mind and reducing the need for frequent replacements.
- Easy Installation: With a design tailored specifically for the BMW 335i models from 2007 to 2016, installation is straightforward and hassle-free. You don't need to be a mechanic to upgrade your vehicle's fuel system; this filter is designed for easy integration, saving you time and effort.
- Improved Fuel Efficiency: By ensuring that your engine receives clean fuel, this filter helps improve fuel efficiency. This means you can enjoy longer drives with fewer stops at the gas station, making it a cost-effective upgrade for your vehicle.
Investing in the Radium Engineering Fuel Hanger Feed Microglass Filter is a smart choice for any BMW 335i owner looking to enhance their vehicle's performance and reliability. Its advanced filtration technology, combined with a user-friendly design, makes it an essential component for those who demand the best from their car. Experience the difference in performance and efficiency with this premium fuel filter, and enjoy the peace of mind that comes with knowing your engine is protected.
Upgrade your BMW 335i today with the Radium Engineering Fuel Hanger Feed Microglass Filter and experience the ultimate in driving performance and reliability. This is more than just a filter; it's a commitment to quality and excellence for your vehicle.
| Brand | Radium Engineering |
|---|
