Radium 08-21 Subaru Fuel Hanger Plumbing Kit - Microglass - 20-0629-05

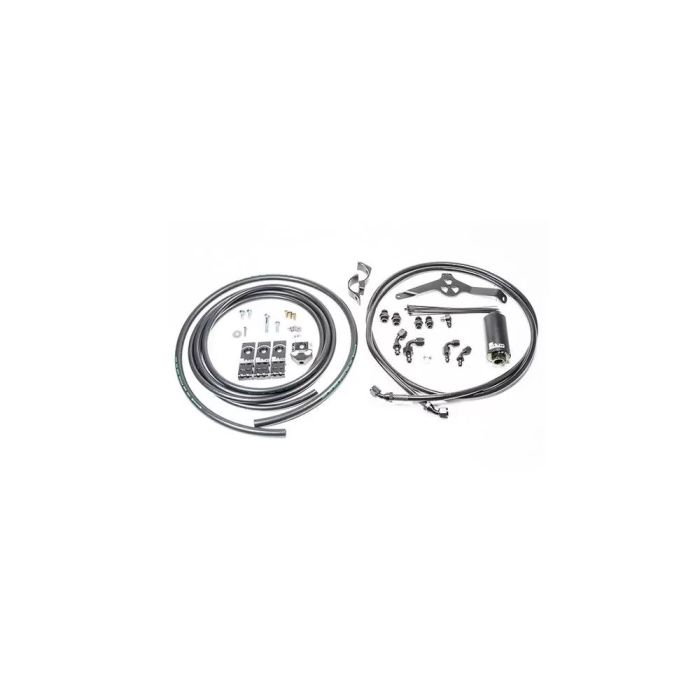

These optional fuel hanger plumbing kits include a filter, hose, fittings, hardware, etc. They add the necessary post pump filtration required when using the Radium Engineering fuel pump hanger.

An 8AN PTFE feed line routes from the Radium hanger up to the Radium fuel filter mounted under the vehicle. From the filter, an 8AN rubber hose is supplied to go to the fuel rails.

A 6AN rubber return hose is included that routes fuel from the fuel pressure regulator back to the fuel pump hanger. A billet aluminum retainers are included to secure the fuel lines.

The only difference between the 2 kits is the filter element (20-0629-03=stainless, 20-0629-05=microglass)

The filter bracket mounts to the chassis with no drilling or permanent modifications required.

Note:
Aftermarket fuel rails and fuel pressure regulator are recommended.

Fitment:

• Subaru Impreza 2008-2014
• Subaru Forester 2008-2014
• Subaru Forester XT 2014-2018
• Subaru WRX 2015-2021
• Subaru STi 2015-2021
