Radium Engineering Nissan Silvia SR20DET Fuel Rail Kit - S13 - 20-0558

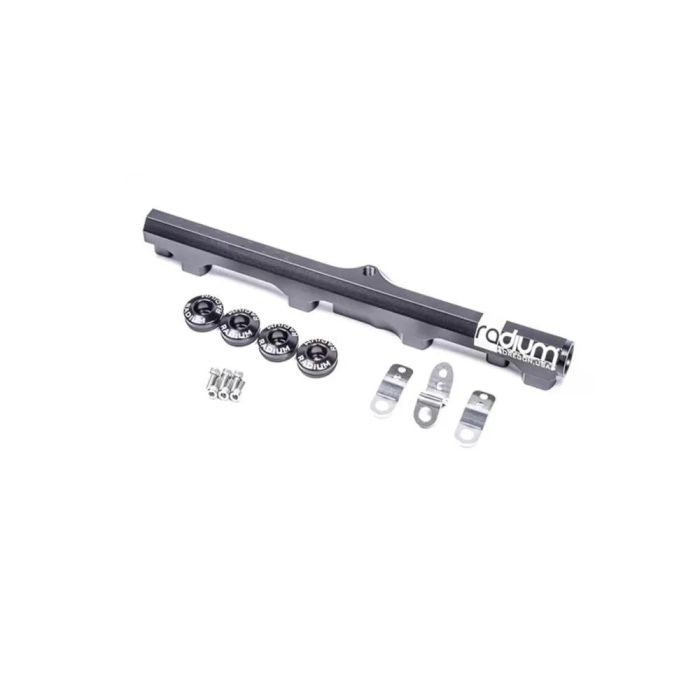

This CNC machined fuel rail for the Nissan SR20DET features a large 0.69 inch internal bore and high flow ports that accept a wide variety of adapter fittings to suit any custom installation. The black satin anodized finish makes it safe to use with all blends of gasoline and alcohol fuels. It installs to the factory fuel rail mounting points and uses aftermarket top-feed fuel injectors.

This fuel rail features 3 large threaded ports (ends and one on the bottom) that are -8AN ORB female. It also has a 1/8NPT female port on the top.

• 8AN ORB Adapter Fittings
• 8AN ORB Direct Mount Regulators
• 1/8 NPT Adapter Fittings

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

This fuel rail features an extra 8AN ORB port in the center on the bottom. This can be used as a location for a Radium FPD-R fuel pulse damper (P/N 20-0176).

This fuel rail kit is designed for the Nissan S13 SR20DET (RWD configuration) intake manifold. Radium Engineering has NOT tested on any FWD SR20 intake manifolds.

This S13 SR20DET fuel rail will also work on most aftermarket intake manifolds that use the OEM fuel rail.

Note:
There are many aftermarket intake manifolds available for the SR20DET. Radium Engineering has not tested every manifold on the market. Please use the photos on this page to judge if the fuel rail may be compatible. And always ask the intake manifold producer if the OEM fuel rail is compatible. If so, then the Radium fuel rail will likely work as well.

Lastly, 3 of the plastic OEM 5mm spacers (Nissan 17522-10V00) must be reused and placed under the included mounting brackets for thermal insulation and proper fuel rail height.
