Radium Engineering Subaru EG33 Top Feed Conversion Fuel Rail Kit - 20-0763-02
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
The fuel rail ports are tapped for 8AN ORB
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
The "conversion" fuel rails convert the OEM side feed fuel injector setup to top feed allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.
The four billet injector seats are anodized and laser etched and provide a sealed receptacle for top feed fuel injectors. The seats are designed for injectors with 14mm lower O-rings.
The EG33 H-6 engine is found in the Subaru Alcyone SVX. Each fuel rail features three 8AN ORB threaded ports (6 total).

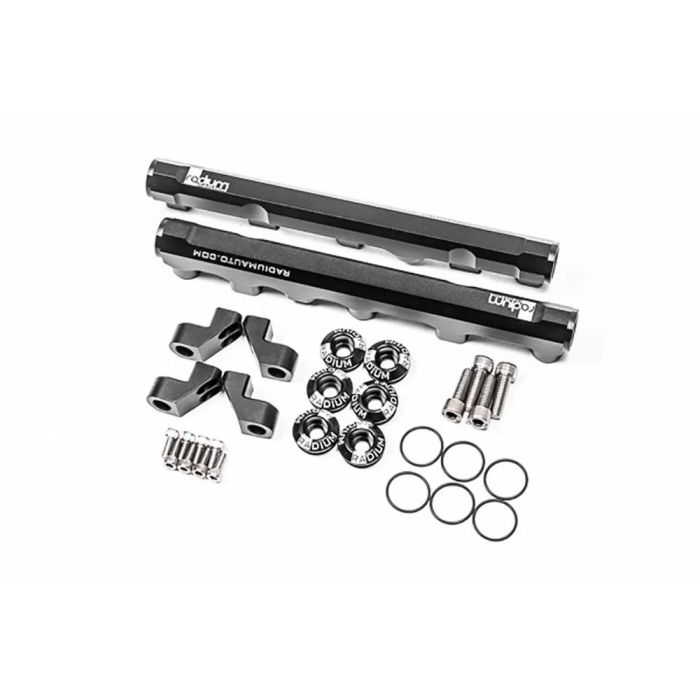

Includes:
- Black Anodized Laser Etched Aluminum Fuel Rails (x2)
- Black Anodized and Laser Etched 26mm Injector Seats (x6)
- Black Anodized Fuel Rail Mounts (x4)
- Stainless Steel M6x1 Fuel Rail Mount Bolts (x8)
- Stainless Steel M8x1.25 Mounting Bolts (x4)
- Injector Dynamics ID1050-XDS-34-14-14
- Injector Dynamics ID1300-XDS-34-14-14
- Injector Dynamics ID1700-XDS-34-14-14
- Injector Dynamics ID2600-XDS-34-14-14
- Subaru Eg33/li>
The fuel rail ports are tapped for 8AN ORB
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
The "conversion" fuel rails convert the OEM side feed fuel injector setup to top feed allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.
The four billet injector seats are anodized and laser etched and provide a sealed receptacle for top feed fuel injectors. The seats are designed for injectors with 14mm lower O-rings.
The EG33 H-6 engine is found in the Subaru Alcyone SVX. Each fuel rail features three 8AN ORB threaded ports (6 total).
Includes:
- Black Anodized Laser Etched Aluminum Fuel Rails (x2)
- Black Anodized and Laser Etched 26mm Injector Seats (x6)
- Black Anodized Fuel Rail Mounts (x4)
- Stainless Steel M6x1 Fuel Rail Mount Bolts (x8)
- Stainless Steel M8x1.25 Mounting Bolts (x4)
- Injector Dynamics ID1050-XDS-34-14-14
- Injector Dynamics ID1300-XDS-34-14-14
- Injector Dynamics ID1700-XDS-34-14-14
- Injector Dynamics ID2600-XDS-34-14-14
- Subaru Eg33/li>
| Brand | Radium Engineering |
|---|
