Tein 07-11 Lexus GS350 (GRS191L/GRS190L) / 07-11 Lexus GS450H (GWS191L) Flex AVS Coilover Kit - VSC76-J1SS3
Please Request Quote for stock status

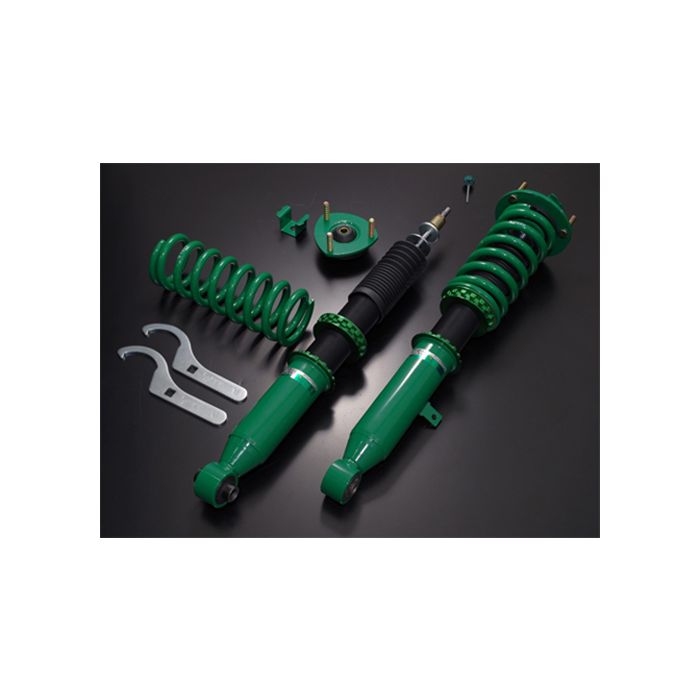

TEIN FLEX AVS Coilover Kit for Lexus GS450H (2007-2011)
Transform your driving experience with the TEIN FLEX AVS Coilover Kit, specifically designed for the Lexus GS450H GWS191L FR models from 2007 to 2011. This high-performance suspension upgrade offers unparalleled control and comfort, making it the perfect choice for enthusiasts seeking to enhance their vehicle's handling and ride quality.
- Precision Handling: Experience superior cornering and stability with adjustable damping force, allowing you to fine-tune your suspension to match your driving style and road conditions.
- Enhanced Comfort: Enjoy a smoother ride with advanced shock absorber technology that absorbs road imperfections, providing a more comfortable journey for both driver and passengers.
- Customizable Ride Height: Achieve the perfect stance with adjustable ride height settings, giving your Lexus a sleek, aggressive look while maintaining optimal performance.
- Durable Construction: Built with high-quality materials, the TEIN FLEX AVS Coilover Kit ensures long-lasting durability and reliability, even under the most demanding driving conditions.
- Easy Installation: Designed for a straightforward installation process, this coilover kit allows you to upgrade your suspension system with minimal hassle.
- Seamless Integration: Specifically engineered for the Lexus GS450H, this kit integrates seamlessly with your vehicle's existing systems, ensuring compatibility and optimal performance.
Upgrade your Lexus GS450H with the TEIN FLEX AVS Coilover Kit and experience the perfect blend of performance, comfort, and style. Whether you're navigating city streets or tackling winding roads, this coilover kit delivers the precision and control you need to elevate your driving experience.
The TEIN FLEX Adaptive Variable Suspension (AVS) for Toyota and Lexus vehicles eliminates the need to replace OE suspension systems with non-OE ones. The FLEX AVS enables ride height adjustment without deactivating AVS. Newly-designed "AVS Needle" for damping force adjustment makes it possible to provide broader damping force adjustable range within the operating angle of AVS actuator.
The TEIN Flex AVS are made with a Hydraulic Bump Stopper (H.B.S) this provides more comfort and hight durability at maximum passenger or cargo load. When regular shock absorbers fully stroke, their bump rubbers are compressed. The energy that is generated by that escapes as a repulsive force, which can disturb the vehicle's behavior. Furthermore, repeated full strokes can damage the damper. In the same situation the EnduraPro SP KIT, featuring H.B.S., internally convert the impact of the stroke to thermal energy (heat) and absorb it, strongly reducing the impact that disturbs the vehicle's behavior. With less damage to the dampers, H.B.S. also contributes to their durability. In shock absorbers with inactive or no H.B.S., the operative valve (green) floats, and oil flows freely through the base valve ports. Resistance to the flow from the shim stack then, causes damping force. Near full compression, when the piston rod strokes beyond a predetermined point, the operative valve is pushed down and activates H.B.S.: the base valve ports are narrowed, blocking the oil flow. This results in high damping force. A relief valve serves to suppress sudden damping force increase, when the pressure in the cylinder exceeds its regular level. The setup of the H.B.S. mechanism is optimized per vehicle model, with the right activation point and damping force.
Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -40
- Recommended Ride Height (inch): -1.6
- Ride Height Adjustable Range:
- Max Low (mm): -97
- Max Low (inch): -3.8
- Max High (mm): 17
- Max High (inch): 0.7
- Recommended Low (mm): -50
- Recommended Low (inch): -2
- Recommended High (mm): -30
- Recommended High (inch): -1.2
- Spring
- Rate (kgf/mm): 10
- Rate (lbs/in): 560
- SP PART#SB100-01200
- Free Length (mm): 200
- I.D. (mm): ID70
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -25
- Recommended Ride Height (inch): -1
- Ride Height Adjustable Range:
- Max Low (mm): -118
- Max Low (inch): -4.6
- Max High (mm): 6
- Max High (inch): 0.2
- Recommended Low (mm): -35
- Recommended Low (inch): -1.4
- Recommended High (mm): -15
- Recommended High (inch): -0.6
- Spring:
- Rate (kgf/mm): 8
- Rate (lbs/in): 448
- SP PART#SM080-01250
- Free Length (mm): 250
- I.D. (mm): ID65
- Year: 2007-2011
- Make: Lexus
- Model: GS450H
- Drivetrain: FR
- Chassis: GWS191L
- Motor Size: 3500
- Vehicle Region: USA
- Due To Individual Differences, Inner Fender May Need To Be Cut If It Interferes With The Spring.
- Full-Length Ride Height Adjustment
- Twin-Tube System
- Hydraulic Bump Stopper (H.B.S)
- Mount Included
