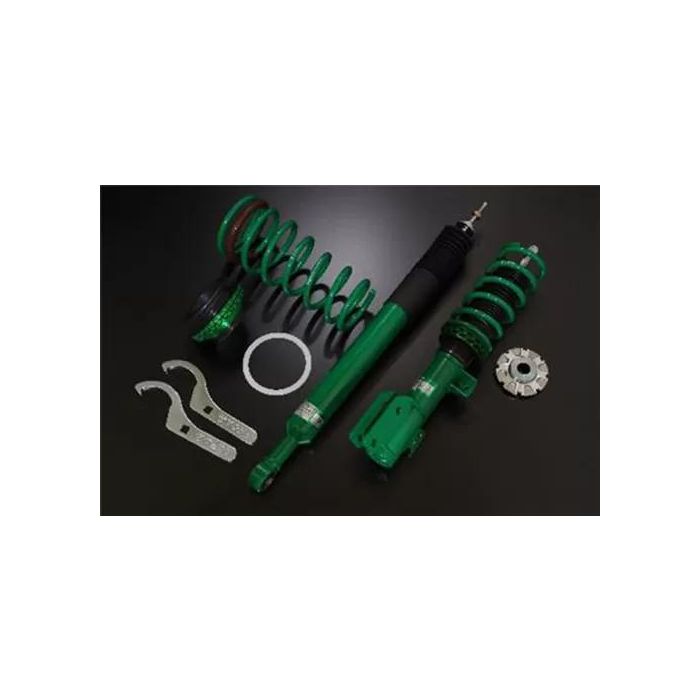

Tein 2003-2005 Mitsubishi EVO III / 2006-2007 EVO IX Street Basis Z Coilovers - GSR52-8USS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -50
• Recommended Ride Height (inch): -2
• Ride Height Adjustable Range:
  • Max Low (mm): -80
  • Max Low (inch): -3.1
  • Max High (mm): -29
  • Max High (inch): -1.1
  • Recommended Low (mm): -60
  • Recommended Low (inch): -2.4
  • Recommended High (mm): -40
  • Recommended High (inch): -1.6
• Spring
  • Rate (kgf/mm): 7
  • Rate (lbs/in): 392
  • SP PART#SY070-13225
  • Free Length (mm): 225
  • I.D. (mm): ID70

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -20
• Recommended Ride Height (inch): -0.8
• Ride Height Adjustable Range:
  • Max Low (mm): -50
  • Max Low (inch): -2
  • Max High (mm): -10
  • Max High (inch): -0.4
  • Recommended Low (mm): -30
  • Recommended Low (inch): -1.2
  • Recommended High (mm): -10
  • Recommended High (inch): -0.4
• Spring:
• Rate (kgf/mm): 6
• Rate (lbs/in): 336
• SP PART#SV060-13225
• Free Length (mm): 225
• I.D. (mm): ID65

• Year: 2005
• Make: Mitsubishi
• Model: Lancer Evolution VIII
• Trim: MR
• Drivetrain: 4WD
• Chassis: CT9A
• Motor Size: 2000
• Vehicle Region: USA

• Rr: The Damper May Contact To The Upper Arm At Full Rebound Situation At The Lowest Seat Position.

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
