TEIN STREET BASIS Z Coilover Kit Toyota Prius S, S Touring ZVW50 FF 2015.12+ JPN- GSTD0-81AS2
Special Price
$598.50
Regular Price
$630.00
sku
TEIN-GSTD0-81AS2
This Item has limited quantity. Request Quote for item availability.
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

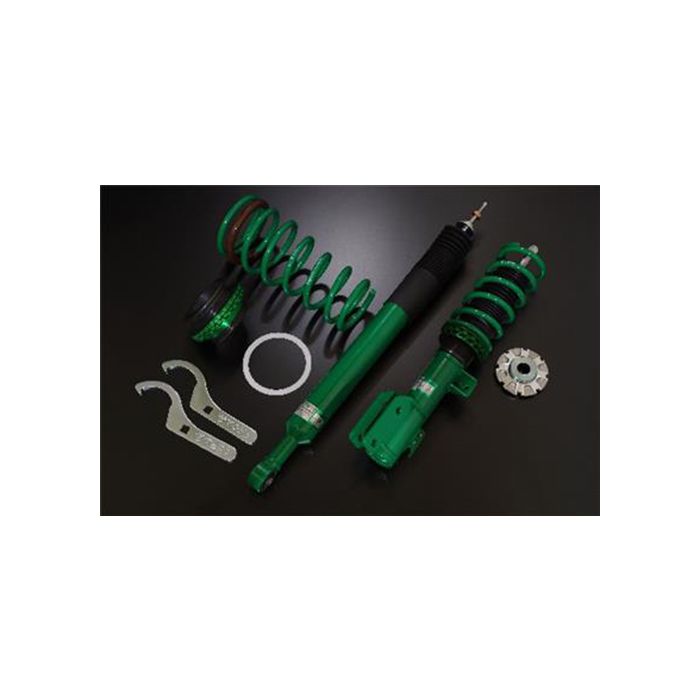

TEIN STREET BASIS Z Coilover Kit Toyota Prius S, S Touring ZVW50 FF 2015.12+ JPN- GSTD0-81AS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -55
- Max Low (inch): -2.2
- Max High (mm): -18
- Max High (inch): -0.7
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring
- Rate (kgf/mm): 4
- Rate (lbs/in): 224
- SP PART#S8TD0-13040
- Free Length (mm): 237
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -65
- Max Low (inch): -2.6
- Max High (mm): -20
- Max High (inch): -0.8
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring:
- Rate (kgf/mm): 4.7
- Rate (lbs/in): 263
- SP PART#S6TD1-13047
- Free Length (mm): 252
- Year: 2015.12+
- Make: Toyota
- Model: Prius
- Trim: S, S Touring
- Drivetrain: FF
- Chassis: ZVW50
- Motor Size: 1800
- Vehicle Region: JPN
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
