ICON 07-Up FJ/03-Up 4Runner/GX/08-Up Land Cruiser Billet Lower Trailing Arm Kit- ICON-54000
Special Price
$836.96
Regular Price
$976.45
sku
ICON-54000
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

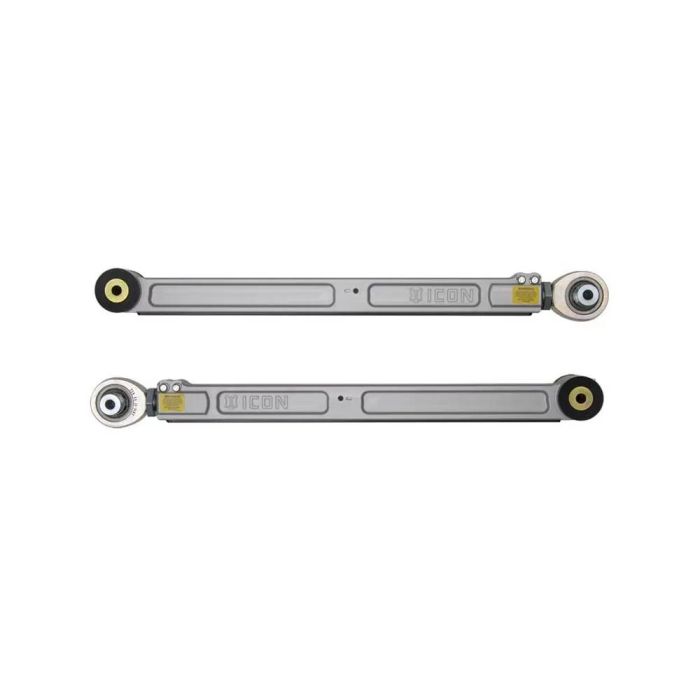

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.
View Installation Instructions
Features:
- On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon ROCK Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
- Covered by ICON's Limited Lifetime Warranty
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Adjustable: yes
- Bushing Color: Black
- Bushing Material: Rod End Bearing
- Bushing Material: Polyurethane
- Bushings Included: yes
- Color: Gray
- Control Arm Color: Silver
- Control Arm Construction: Billet
- Control Arm Material: Aluminum
- End 1 Type: Rod End Bearing
- End 2 Type: Bushing
- Finish: Anodized
- Grade Type: Performance
- Grease Fitting Included: yes
- Material: Aluminium
- Mounting Hardware Included: yes
- Pre-Greased: No
- Service Parts: 614509 - 54000 BUSHING AND SLEEVE KIT
- Suspension Grade Type: Performance
- Lexus GX470 2003-2009
- Lexus GX460 2010-2022
- Toyota 4Runner 2003-2022
- Toyota Land Cruiser 2008-2021
- Toyota FJ Cruiser 2007-2014
| Brand | Icon Vehicle Dynamics |
|---|---|
| Make Model Year | Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013, Toyota 4Runner 2003, Toyota 4Runner 2004, Toyota 4Runner 2005, Toyota 4Runner 2006, Toyota 4Runner 2007, Toyota 4Runner 2008, Toyota 4Runner 2009 |
