Icon Vehicle Dynamics TOYOTA SECONDARY LONG TRAVEL 2.5 RR CDCV PAIR Toyota Front- ICON-59703CP-CB

Special Price $1,379.18 Regular Price $1,574.95
sku
ICON-59703CP-CB
Free Shipping Banner
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

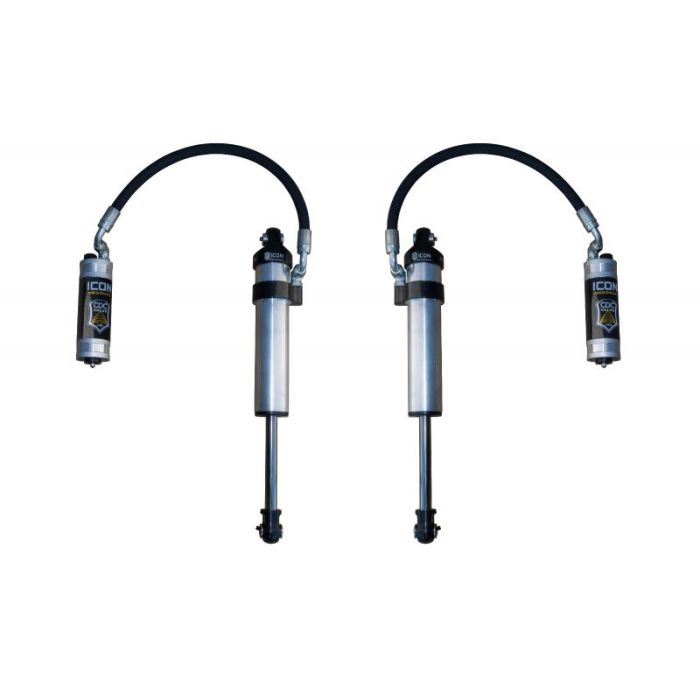

TOYOTA SECONDARY LONG TRAVEL 2.5 REMOTE RESERVOIR CDCV SHOCK PAIR

Features

  • External Reservoir: Yes
  • Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
  • Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
  • Adjustable: Yes
  • Boot Included: NO
  • Bore Diameter: 2.25
  • California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
  • Cylinder Color: Silver
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • Gas Charged: Yes
  • Grade Type: Performance
  • Lower Mount Type: EYELET
  • Mounting Hardware Included: Yes
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Center of Eylet
  • Shock Absorber Rod End Measuring Point: Center of Eylet
  • Title: TOYOTA SECONDARY LONG TRAVEL 2.5 RR CDCV PAIR
  • Tube Outside Diameter: 2.5
  • Upper Mount Type: EYELET
  • Shaft Diameter: 0.875
More Information
Brand Icon Vehicle Dynamics
Make Model Year Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013, Toyota 4Runner 2003, Toyota 4Runner 2004, Toyota 4Runner 2005, Toyota 4Runner 2006, Toyota 4Runner 2007, Toyota 4Runner 2008, Toyota 4Runner 2009
