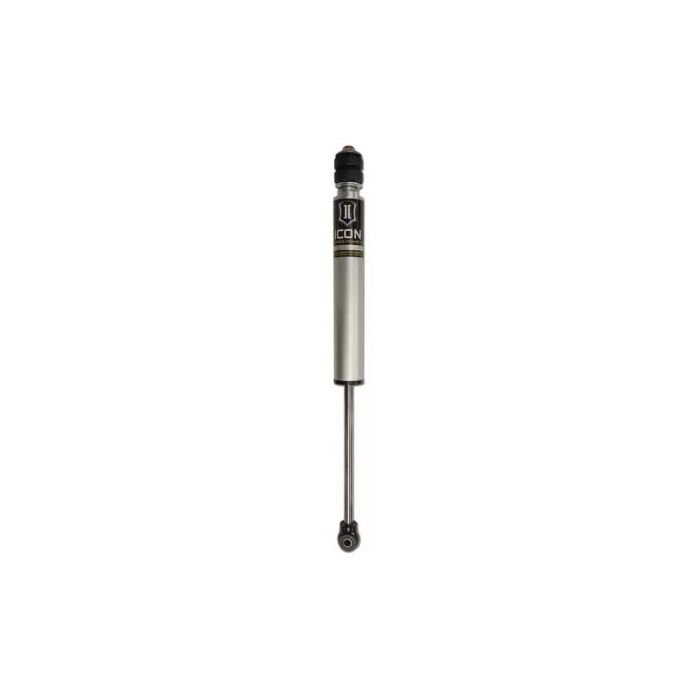

ICON 2005-Up Toyota Tacoma 4WD 0-1.5" Lift Rear 2.0 VS Shock- ICON-56503
Special Price
$187.73
Regular Price
$189.95
sku
ICON-56503
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
View Installation Instructions
Features:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8" chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
- Adjustable: NO
- Attributed Description: ICON Vehicle Dynamics Shock Absorber Adjustable: No Boot Included: Yes Coil Over Springs Included: No Dust Shield: No Gas Charged: Yes Lower Mount Type: Eyelet Shock Absorber Body End Measuring Point: Shoulder of Stem Shock Absorber Rod End Measuring Point: Center of Eyelet Upper Mount Type: Stem Remote Reservoir: No Body Diameter: 2 IN Compressed Length: 14.250 IN Fully Open Length: 24.32 IN Shock Stroke: 10.07 IN Travel Length: 10.07 IN
- Body Diameter: 2 IN
- Boot Included: Yes
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- Bushing Material: Rubber
- Coil Over Springs Included: NO
- Dust Shield: NO
- Finish: Anodized
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Remote Reservoir: NO
- Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: CENTER OF EYELET
- Upper Mount Type: Stem
- Toyota Tacoma Base 4WD 2005-2015
- Toyota Tacoma Pre Runner 2005-2015
- Toyota Tacoma TRD Sport Prerunner 2006-2009
- Toyota Tacoma SR5 Prerunner 2006-2009
- Toyota Tacoma Base Prerunner 2006-2006
- Toyota Tacoma TRD Sport 2010-2022
- Toyota Tacoma TRD Pro 2015-2022
- Toyota Tacoma Edicion Especial 2016-2022
- Toyota Tacoma SR 2016-2022
- Toyota Tacoma Limited 2016-2022
- Toyota Tacoma TRD Off-Road 2016-2022
- Toyota Tacoma SR5 2016-2022
- Toyota Tacoma Sport 17-22
- Toyota Tacoma Nightshade 2021-2022
- Toyota Tacoma Trail 2021-2021
| Brand | Icon Vehicle Dynamics |
|---|---|
| Make Model Year | Toyota Tacoma 2005, Toyota Tacoma 2006, Toyota Tacoma 2007, Toyota Tacoma 2008, Toyota Tacoma 2009, Toyota Tacoma 2010, Toyota Tacoma 2011, Toyota Tacoma 2012, Toyota Tacoma 2013, Toyota Tacoma 2014, Toyota Tacoma 2015, Toyota Tacoma 2016, Toyota Tacoma 2017, Toyota Tacoma 2018, Toyota Tacoma 2019, Toyota Tacoma 2020 |
