Radium Engineering Catch Can Kit CCV Toyota Tundra 2007-2021- RADI-20-0239

$254.95
sku
RADI-20-0239
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

This installation kit was specifically designed for the 2007-2021 Toyota Tundra with the 3UR-FE engine. There is no drilling or permanent modifications required. IF USING A TRD OR OTHER AFTERMARKET SUPERCHARGER, please check the pictures carefully to make sure the location of the catch cans is not occupied by intercooler plumbing or other related supercharger components.

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from everyday driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

Features:

  • Effectively raises the octane and increased engine performance from cleaner inlet air
  • Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
  • Excessive oil collection can be an indicator of a damaged engine.
  • Lowers hydrocarbon emissions
  • Capacity: 7 fluid ounces
  • Height (without fittings): 5 inches
  • Outside Diameter: 2.45 inches
Tundra Catch Can Kit Options
Radium Engineering offers two independent Tundra oil catch can kits that are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering into the cabin.

The 20-0239 CCV Catch Can Kit comes with 2 mounting brackets. One bracket will be disregarded depending if the PCV kit will also be used. The crankcase vent runs inline with the 1/2" valve cover breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience vacuum and would normally be drawing unwanted crankcase vapors, unspent fuel, and oil sludge into the air filter intake pipe. If the engine is turbocharged or supercharged and you are finding oil accumulation stuck in the intercooler, this catch can is a necessity as oil will lower the thermal efficiency properties of the heat exchange process.

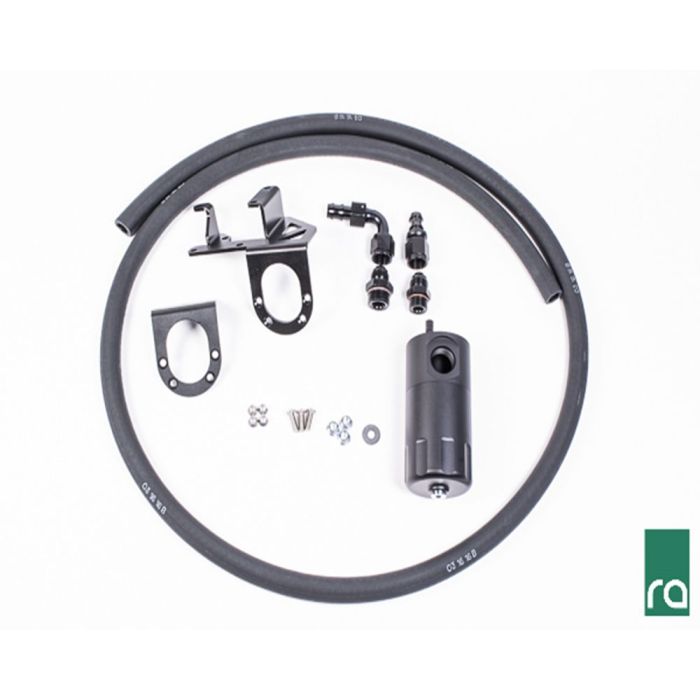

CCV Kit Includes:
  • Billet oil catch can with integrated condenser and dipstick
  • Tundra-specific laser cut anodized aluminum mounting bracket
  • Laser cut anodized aluminum mounting bracket
  • Anodized aluminum 8AN hose ends and adapter fittings
  • Enough 1/2" PCV rubber hose to mate to custom applications
  • Stainless steel mounting hardware
Fitment:
  • Toyota Tundra 2007-2021
More Information
Brand Radium Engineering
Make Model Year Toyota Tundra 2014, Toyota Tundra 2015, Toyota Tundra 2016, Toyota Tundra 2017, Toyota Tundra 2018, Toyota Tundra 2019, Toyota Tundra 2020, Toyota Tundra 2021, Toyota Tundra 2007, Toyota Tundra 2008, Toyota Tundra 2009, Toyota Tundra 2010, Toyota Tundra 2011, Toyota Tundra 2012, Toyota Tundra 2013
