Wilwood Universal UTV6 Caliper 1.00/1.00/1.00 0.25 Rotor - Anodize - 120-17369

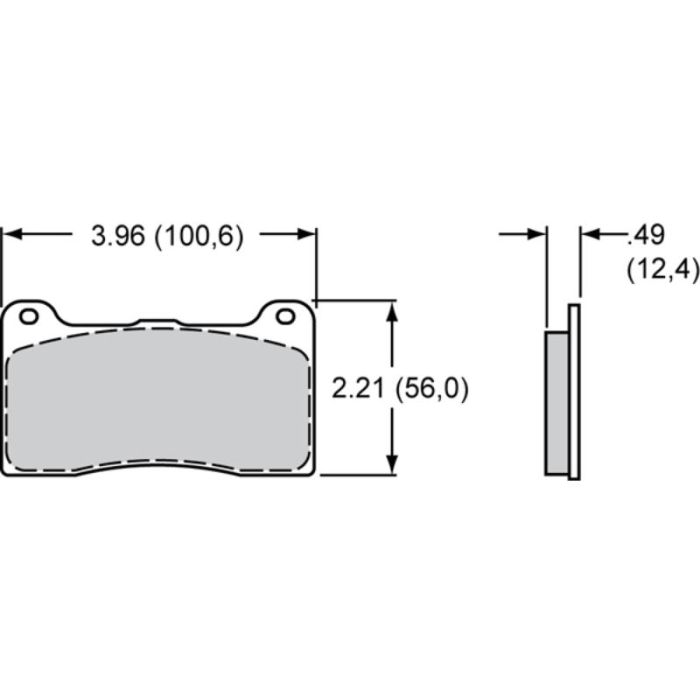

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.
Features:
- Piston Count: 6
- Piston Area (in^2): 2.37
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 0.25
- Rotor Diameter(in): 11.25
- Pad Area (in^2): 6.36
- Pad Volume (in^3): 2.1
- Material: Forged Aluminium
- Weight(Lbs): 3.2
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 8.75
- Mount Side: Universal
- Mount Type: Lug
UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.
Features:
- Piston Count: 6
- Piston Area (in^2): 2.37
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 0.25
- Rotor Diameter(in): 11.25
- Pad Area (in^2): 6.36
- Pad Volume (in^3): 2.1
- Material: Forged Aluminium
- Weight(Lbs): 3.2
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 8.75
- Mount Side: Universal
- Mount Type: Lug
| Brand | Wilwood |
|---|---|
| upc | 889545112276 |
