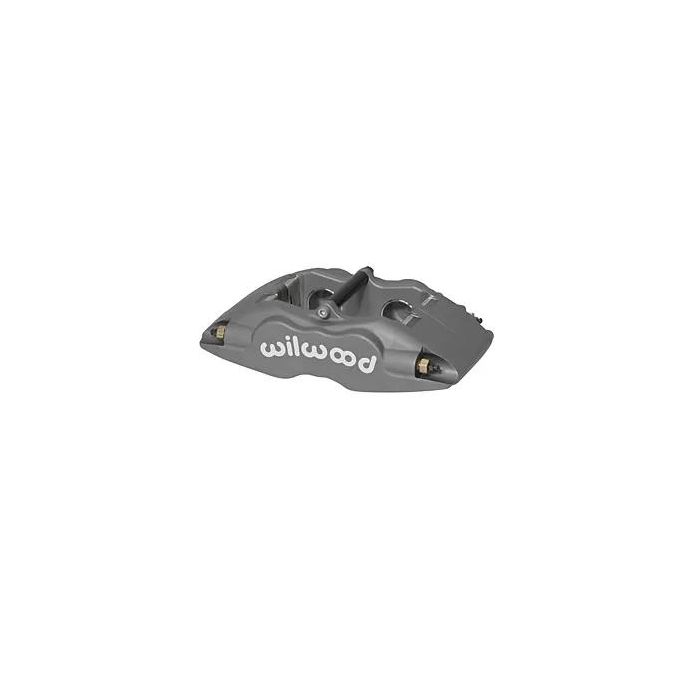

Wilwood Caliper-Forged Superlite - Anodized 1.25in Pistons 1.25in Disc - 120-11127
- Wilwood Caliper-Forged Superlite - Anodized 1.25in Pistons 1.25in Disc - 120-11127 delivers superior braking performance for enhanced vehicle control and safety.
- Experience lightweight forged calipers designed for high-performance driving, reducing unsprung weight and improving handling responsiveness.
- Upgrade your braking system with anodized pistons that resist corrosion and heat, ensuring consistent stopping power under pressure.
- Perfect for racing enthusiasts and street performance upgrades, this caliper boosts confidence and driving precision on every ride.
- Enhance your vehicle’s braking efficiency and reliability—add to cart now to transform your driving experience today.
The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.
The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.
The FSL body design is a highly efficient product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition to the piston body housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Center bridge bolts replace cotter pins to provide additional support and allow quick access with positive brake pad retention. Clamping force, structural deflection, and volume displacement tests have proven the superior strength and efficiency of the FSL. On-track testing has proven driver satisfaction. The bottom line is better stopping power with less pedal travel.
Features:
- Caliper Type: 4 Piston
- 2.46" Piston Area
- 1.25" Pistons, 1.25" Disc
- Rotor Diameter: 13.06"
- Stainless Steel Piston Type
- Anodized
| Brand | Wilwood |
|---|---|
| upc | 889545001211 |
