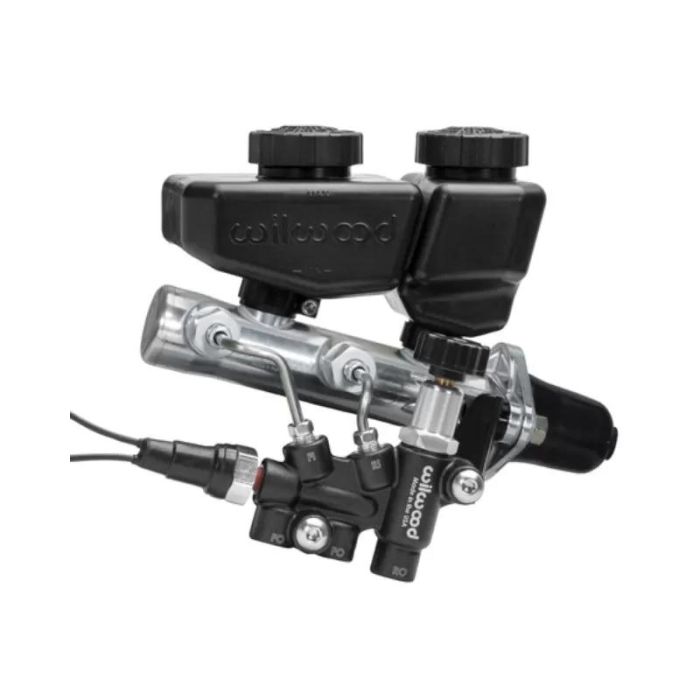

Wilwood Remote Tandem M/C Kit w/Brkt and Valve - 1in Bore Black - 261-16962-BK
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
Wilwood has packaged the Remote Tandem Master Cylinder in a kit with the GM style angled reservoirs, Combination Proportioning Valve, mounting bracket, fluid tubes, and mounting hardware. Wilwood's Tandem Master Cylinders represent the latest in refinements in brake pressure actuation and fluid control, and the durable nylon reservoirs are designed so that the top is level when mounted at the 15degree angle typical of GM power brake applications. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22" to 3.40" on center studs.
The Combination Proportioning Valve substantially simplifies wiring and brake proportioning incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Rear brake circuit reservoir, closest to the booster, holds nearly 5 oz, while front brake reservoir holds 8 oz. both made of black plastic with black screw caps.
Features:
- Bore Size1.00"
- Area 0.780
- Type Tandem Outlet
- Material Aluminum
- Finish Black E-coat
- Reservoir Res Type Remote
- Res Size (oz)7.8 / 4.7
- Res Size(cu in)14.0 / 8.5
- UPC 889545106794
Wilwood has packaged the Remote Tandem Master Cylinder in a kit with the GM style angled reservoirs, Combination Proportioning Valve, mounting bracket, fluid tubes, and mounting hardware. Wilwood's Tandem Master Cylinders represent the latest in refinements in brake pressure actuation and fluid control, and the durable nylon reservoirs are designed so that the top is level when mounted at the 15degree angle typical of GM power brake applications. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22" to 3.40" on center studs.
The Combination Proportioning Valve substantially simplifies wiring and brake proportioning incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Rear brake circuit reservoir, closest to the booster, holds nearly 5 oz, while front brake reservoir holds 8 oz. both made of black plastic with black screw caps.
Features:
- Bore Size1.00"
- Area 0.780
- Type Tandem Outlet
- Material Aluminum
- Finish Black E-coat
- Reservoir Res Type Remote
- Res Size (oz)7.8 / 4.7
- Res Size(cu in)14.0 / 8.5
- UPC 889545106794
| Brand | Wilwood |
|---|---|
| upc | 889545106794 |
