AEM 1 BAR MAP or 15 PSIA Stainless Steel Sensor Kit - 30-2130-15

AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. Most sensors come with a mating connector and pins for ease of installation.

Features:

• High-quality sealed sensor housings
• Mating connector and pins included (most sensors)
• Accurate and affordable!
• 1 BAR / 15 PSIa MAP Stainless Sensor Kit
• Stainless Steel Sensor Body
• 1/8' NPT Male Thread

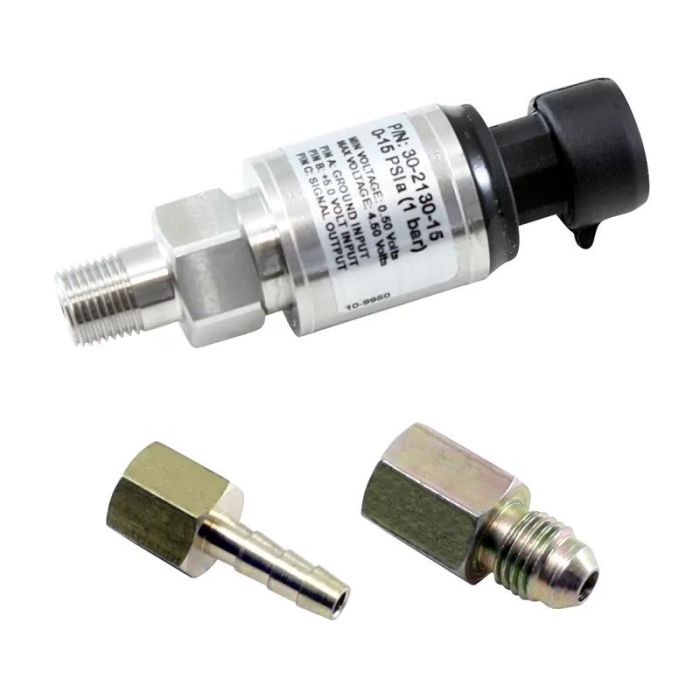

• Includes: 1 BAR / 15 PSIa MAP Stainless Steel Sensor, Connector, Pins, 1/8' NPT to -4 Adapter & 1/8' NPT to 3/16' Barb Adapter.
• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 150PSI
• Response Time: < 1mS
• Wetted Materials: 304L & 316L Stainless Steel
• Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Weight: <85g
• Supply Current: <6mA at 5 Vdc
• Output: .5 to 4.5Vdc Linear
• Transfer Function: PSI = (3.7501*(Voltage))-16.575
• Elec. Termination: Integral weatherproof connector, includes mating connector & Pins(Supply Voltage 5Vdc +/- .5, Ground, Output)

• Universal

• Instruction Manual
• Voltage Output
