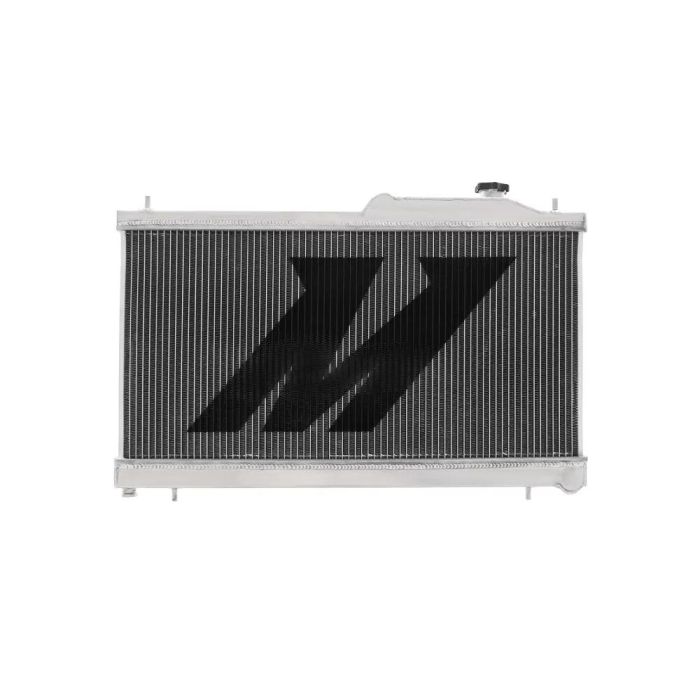

Mishimoto 08-09 Subaru WRX/STi Manual Aluminum Radiator - MMRAD-STI-08

The Mishimoto performance aluminum radiator for the WRX and STI is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto WRX radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct fit, making installation effortless with no cutting or modification required. This radiator comes with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and, like all our aluminum radiators, comes with the Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 2008-2014 WRX and 2008-2019 STI
• Full aluminum construction including durable, TIG-welded end tanks
• Two-row, 1.65 thick brazed aluminum core
• Increased fluid capacity and optimal heat dissipation
• Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
• Includes 1.3 Bar High-Pressure Radiator Cap , which effectively raises the boiling point of engine coolant and provides a safer, more efficient system
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Mishimoto Lifetime Warranty

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Overflow Nipples - 2
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

• Material: Aluminum
• Overall Height: 21.8
• DPI: 13091/13093
• Drain Plug Length: 0.47
• Drain Plug Thread Size: (M12) x 1.5
• Overall Length: 28
• Tank Wall Thickness: 0.08
• Outlet: 1.54
• Rows: 2
• Inlet: 1.54
• Coolant Capacity: 2.21
• Dual Pass: False
• Overall Width: 2.15
• Core Length: 27.08
• Core Height: 13.39
• Core Thickness: 1.65
• Fill Neck: 1.25
• Overall Length (in): 21.80
• Overall Height (in): 28.00
• Overall Width (in): 2.15
• Rows: 2

• Engine Codes
  • EJ255
  • EJ257
• Chassis Codes
  • GE
  • GH
• Fits
  • 2008-2014 Subaru WRX
  • 2008-2019 Subaru STI
  • 2009-2013 Subaru Forester XT
  • 2005-2009 Subaru Outback XT
  • 2005-2009 Subaru Legacy GT

• This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. Caution: The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact [email protected] small fitting for: 2008-2009 Subaru WRX 2008-2019 Subaru STIUse large fitting for: 2010-2014 Subaru WRX 2005-2009 Subaru Legacy GT 2005-2009 Subaru Outback XT 2009-2013 Subaru Forester XT
