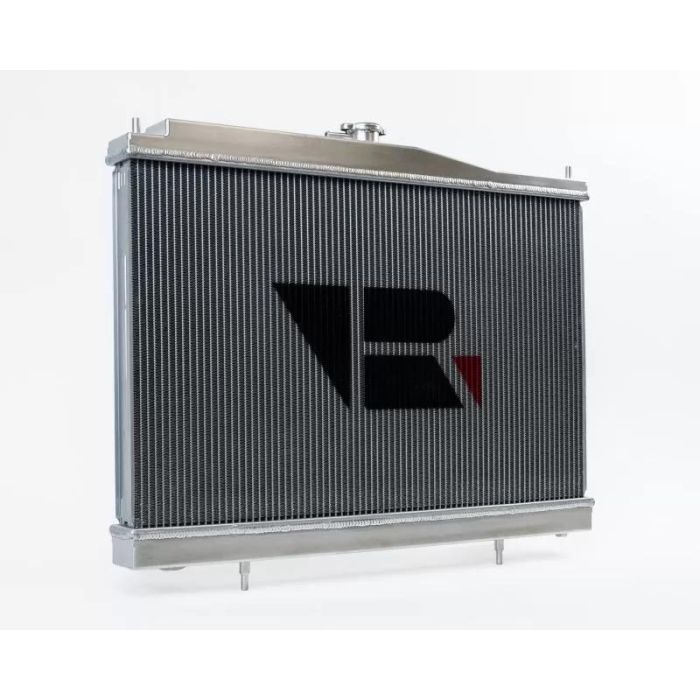

CSF Nissan R33 Skyline GT-R/GTS Full Billet Aluminum High-Performance Radiator - 7219

The Nissan R33 Skyline is one of the JDM legendary vehicles. From GTS to GT-R, people still go wild anytime they see one. Here in the states Nissan GT-R is still of the most popular JDM imports regardless of generation. Import companies like TopRank have been helping enthusiasts acquire these dream vehicles for years. Now they have teamed up with CSF to help bring a truly special product to the market. Introducing the Full Billet High-Performance Aluminum Radiator for the Nissan R33 Skyline.
Design & Engineering

The inline 6 motors found in the R33 Skyline are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26, you probably don't worry too much about engine reliability. The R33 GT-R's RB26 is well know for making big power and being reliable while doing it. However power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check, it's always better to have more protection.CSF set out to develop a premium radiator that would offer ultimate performance cooling while being built to last a lifetime. Since the R33 is becoming a valuable collector's car, it makes sense to use the highest quality parts when restoring or modifying them. With full CNC machined billet aluminum end tanks TIG welded by hand to the high grade aluminum core, this radiator performs even better than it looks.
OEM vs CSF

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R33 Skyline.
Features:

• CNC Machined 100% Billet Aluminum End Tanks
• Raw Billet Aluminum Finish (#7219)
• 2-Row-42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF?s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• Top Rank Logo machined into Top End Tank and Painted on Core
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play Drop-in Fit Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty
• Limited Production

Specifications:

• Noumber of Cooling Tubes: 75
• Number of Cooling Fin Rows: 76
• Fin Height/Width: 6.5mm
• Core Material: Aluminum
• Tank Material: CNC Billet Aluminum
• Construction: 100% TIG Welded

Fitment:

• Nissan R33 Skyline GT-R (incl. Nismo, V-Spec, CRS, etc) 1995-1998
• Nissan R33 Skyline GTS / GTS-25 / GTS-4 / GTS-25t 1994-1997
• Nissan Skyline R33 400R (44 Produced) 1995-1996
• Nissan Skyline R33 Autech Version 40th Anniversary (416 Produced) 1997-1998
• Nissan Skyline R33 GT-R V-Spec N1 (87 Produced) 1995-1998
• Nissan Skyline R33 GT-R LM Limited (86 Produced) 1995-1998
• Nissan Skyline R33 GT-R V-Spec LM Limited (102 Produced) 1995-1998

Note:

• OEM Part Number: 21410-15U17
