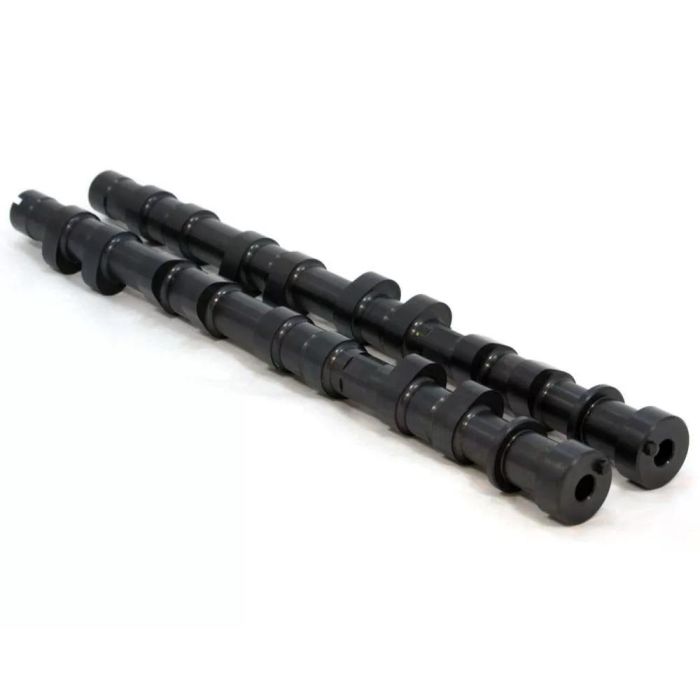

GSC P-D Evo 4-8 Stroker R2 Cams Billet - 7008R2
GSC P-D Stroker Billet R2 Camshaft Mitsubishi Evolution 4-8
The GSC Power-Division billet 7008R2 is designed to rev between 4000-8500 RPMs and should be used with a stroked engine or added displacement engine. The peak lift of 12.0mm??intake and exhaust will require upgraded valve springs and a titanium retainer with special attention to seal to retainer clearance. With the lift of this profile, it is suggested to only use the 5041/5040 Ti retainer and spring kits due??to valve seal to retainer clearance.
The 7008R2 is a high lift, very aggressive profile, with a short overall duration to keep a lower usable RPM band. The 7008R2 is designed to rev between 4000-8500 RPMs and should be used with a stroked engine or added displacement engine. The peak lift of 12.0mm intake and exhaust will require upgraded valve springs and a titanium retainer with special attention to seal to retainer clearance. With the lift of this profile, it is suggested to only use the 5041/5040 Ti retainer and spring kits due??to valve seal to retainer clearance. The 5041 can be used to 40+psi??and the 5040 to 32psi on the R2 profile at 8500 RPMs without float or flutter issues. The profile will work fine on the OEM rocker arm and the zero-tick lifter, or with the OEM lifter. We have seen gains of 25-30 WHP over the S2 profile on the stroked applications, with much more possible when used with a ported head and aftermarket intake manifold.
*If using aftermarket cam gears (especially AEM) check the bolt length.??Some cam gears are too thick for the OEM bolt on the billet cams, a 40mm underhead length bolt may be necessary in this case*
Specifications:
Intake:
- ADV Duration: 274??
- Duration @ 0.040: 236??
- Peak Lift: 12.00mm
- Center Line: 109??
- ADV Duration: 274??
- Duration @ 0.040: 236??
- Peak Lift: 12.00mm
- Center Line: 115??
- Mitsubishi Evo 4 1997-1998
- Mitsubishi Evo 5 1999
- Mitsubishi Evo 6 2000
- Mitsubishi Evo 7 2001-2002
- Mitsubishi Evo 8 2003-2005
