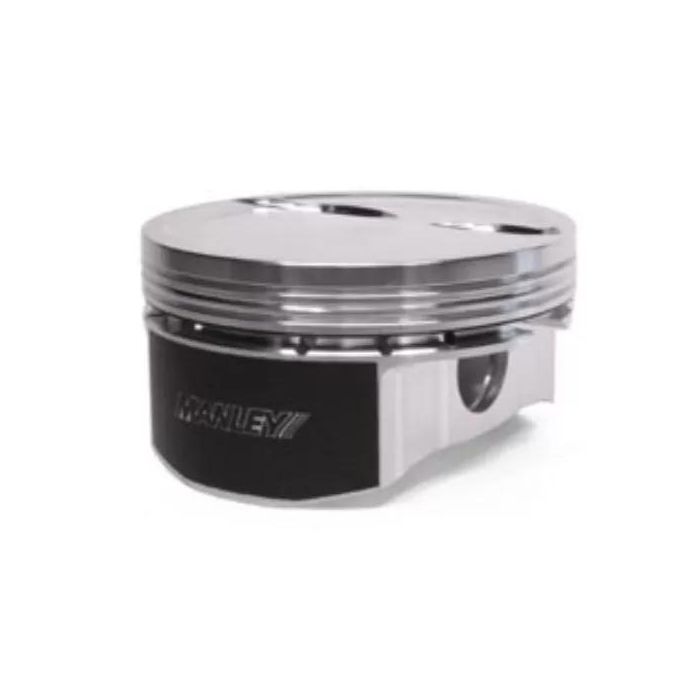

Manley Ford Coyote 5.0L DOHC +6.75cc Dome Piston Set - 598005C-8

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique one fixturing manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.

Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.

Features:

• 2618 high strength material Lightweight design.
• Perfect ring groove to skirt squareness.
• Round wire locks.
• Moly Coated Skirts.
• 1.2, 1.2, 3.0mm ring package.
• 2.500 x .150 wall Premium Chrome Moly pin (Standard Series) included.
• 9310 alloy .180 wall pin (Extreme Duty Series) included P/N 42507.
• Offset wrist pin design for quiet start-ups.
• Pressure balance groove.
• Will accommodate +1mm valve sizes (except 5959 series).
• .200 deck thickness, .225 down top ring.

• Bore Size: 3.635
• Rod Length: 5.933
• Stroke (mm): 3.650
• Comp Distance: 1.165
• Dome Volume (cc): +3.75
• Comp Ratio: 11.0:1
• Piston Type: Dome
• Piston Wt/Gms: 393
• Premium Steel Top Rings: 46710ST-8

• Ford Coyote 5.0L Gen I/II DOHC 4 Valve 2011-2017
