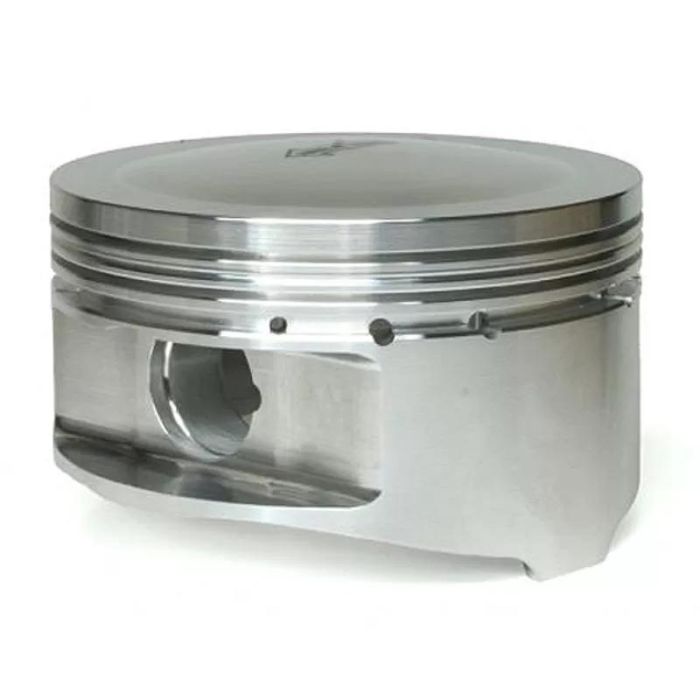

Manley 08+ Mitsubishi Evo X (4B11T) 86.5mm +.5mm Oversize Bore 9.0:1 Dish Piston Set with Rings - 614005C-4
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through a unique one fixturing manufacturing method that assures maximum horsepower.
Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.
- Lightweight design with offset wrist pinPremium steel top ring sets and round wire locks includedMade for +1mm valve sizesPressure balance groove
86.5mm Standard Stroke Piston Specifications:
- Bore Size : 86.5mmOver Size : + .5mmRod Length : 143.66mmStroke : 86mmComp Distance : 1.313Dome Volume : -5ccCylinder Head : 49ccComp Ratio : 9.0:1Piston Type : DishPiston Weight : 343 grams
NOTE: Recommended piston clearance .0035 measured 1.100 from the bottom of the oil ring.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through a unique one fixturing manufacturing method that assures maximum horsepower.
Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.
- Lightweight design with offset wrist pinPremium steel top ring sets and round wire locks includedMade for +1mm valve sizesPressure balance groove
86.5mm Standard Stroke Piston Specifications:
- Bore Size : 86.5mmOver Size : + .5mmRod Length : 143.66mmStroke : 86mmComp Distance : 1.313Dome Volume : -5ccCylinder Head : 49ccComp Ratio : 9.0:1Piston Type : DishPiston Weight : 343 grams
NOTE: Recommended piston clearance .0035 measured 1.100 from the bottom of the oil ring.
| Brand | Manley |
|---|---|
| upc | 807298027043 |
