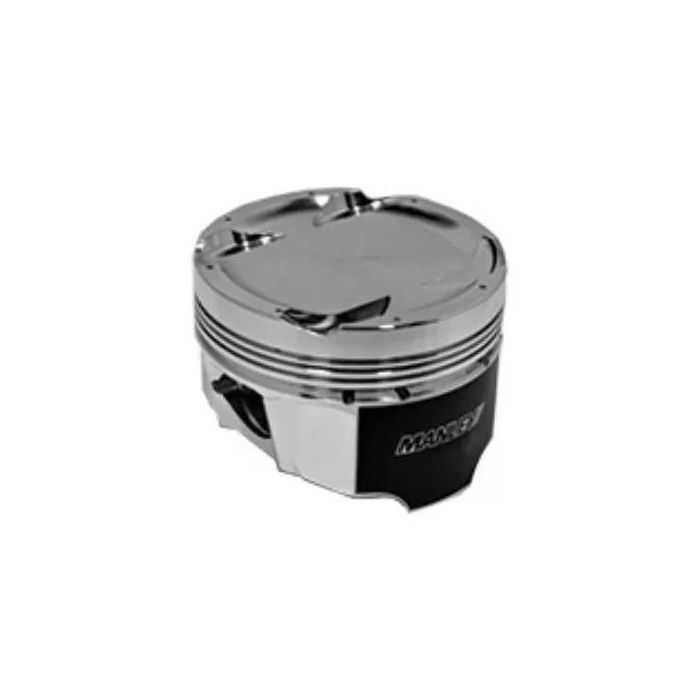

Manley 08+ Mitsubishi 4B11T 86mm STD -11cc Dome 9.0:1 CR Turbo Tuff Series Piston Set w/ Rings - 624200CE-4

$993.67
sku
man624200CE-4
Free Shipping Banner
Stock is low or unavailable.
Please Request Quote for stock status
Rev up your Mitsubishi Evo with the Manley 86mm STD 9.0 Dish Piston Set w/ Rings. Designed for the 4B11T engine, this high-performance piston set enhances your vehicle's power and efficiency. - Precision-engineered for optimal performance - Durable construction for long-lasting reliability - Includes rings for a complete installation - Boosts engine power and efficiency - Perfect fit for Mitsubishi Evo models from 2008+ Upgrade your ride with Manley's trusted quality and experience the difference in performance.

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique one fixturing manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

4B11 - Turbo Tuff Design:

  • 2618 high strength material.
  • 2.250 x .210 wall 9310 alloy pin included P/N 42553.
  • Pressure balance groove.
  • Will accommodate +1mm valve sizes.
  • Vertical Gas Ports designed for high HP Race Engines.
  • Premium Steel top rings with Napier seconds and round wire locks included.
  • Recommended piston clearance .0035 measured 1.100 from the bottom of the oil ring.
Common Features:
  • Crown Thickness: .320
  • Top Ring: 1.2mm, .350 down
  • Second Ring: 1.2mm
  • Oil Ring: 2.8mm
  • Valve Notches: .175 Int., 175 Exh.
  • Pin Included: 9310 Alloy P/N 42553
  • .210 wall, 132 grams, 2.250 long, 23mm dia.
  • Round Wire Locks: P/N 42262
Specifications (94mm STROKER 2.2L):
  • Bore Size (mm): 86
  • Over Size: STD
  • Rod Length: 143.66
  • Stroke: 94
  • Comp. Distance: 1.155
  • Dome Volume (cc): -11
  • Cylinder Head (cc): 49
  • Comp. Ratio: 9.0
  • Piston Type: Dish
  • Piston Wt / Gms:
  • Included Ring Set: 46860-4
Fitments:
  • Mitsubishi EVO X 08-Up - 4B11T .9055/23mm x 2.250 Pin x .180 Wall
