Garrett GTW34 Turbine Hsg Kit O/V T3 / 4 Bolt 0.82 A/R - 844669-0003

Special Price $343.36 Regular Price $480.30
sku
grt844669-0003
Free Shipping Banner
Stock is low or unavailable.
Please Request Quote for stock status
Upgrade your turbo system with the Garrett GTW34 Turbine Housing Kit. Designed for optimal performance, this kit enhances your vehicle's power and efficiency. - **Precision Engineering**: Ensures reliable and consistent performance. - **Versatile Fit**: Compatible with T3 / 4 bolt setups. - **Optimal A/R Ratio**: 0.82 A/R for balanced power and response. - **Durable Construction**: Built to withstand high temperatures and pressures. - **Enhanced Performance**: Boosts turbo efficiency for improved horsepower. Transform your driving experience with this high-quality turbine housing kit, perfect for enthusiasts seeking superior performance.

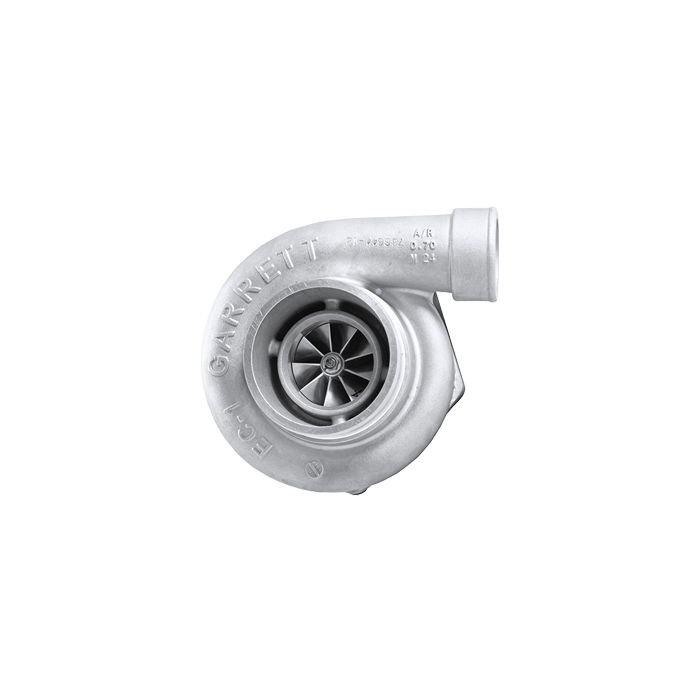

GTW3476R Turbocharger

Horsepower: 450 - 700

Displacement: 2.0L - 4.5L

Important product information: Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.

Features

  • PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • 58mm TURBOCHARGER COMPRESSOR OPTION
  • AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
  • FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
  • LIGHTWEIGHT ALUMINUM BACKPLATE
  • INCONEL SUPER-ALLOY TURBINE WHEEL

GTW3476R

Reference Data

The latest Garrett technologies featuring many advanced features.


GTW3476R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 450-700              Disp: 2.0L-4.5L 58mm 76mm 58 0.70 65mm 57mm 76
Supercore PN
Ball Bearing 841691-5001S
Journal Bearing 841297-5001S
Turbine Kits: GTW34 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GTW 3476 Supercores 844669-0002 0.63 T3 4-Bolt Free Float N
844669-0003 0.82 T3 4-Bolt Free Float N

GTW3476R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTW3476R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

Compressor Map

Exhaust Flow Chart

About Garrett® GTW Series Turbochargers

Garrett® GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.

The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.

The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.

More Information
Brand Garrett Motion
